Removal and Replacement Procedures
Maintenance and Service Guide 5–11
5.6 MultiBay II Device
1. Prepare the notebook for disassembly (Section 5.3).
2. Position the notebook with the left side toward you.
3. If it is installed, remove the T8M2.0×4.0 screw 1 that
secures the MultiBay II device to the notebook.
4. Gently press in on the left side of the device 2 to unlock it.
5. Slide the device 3 from the notebook.

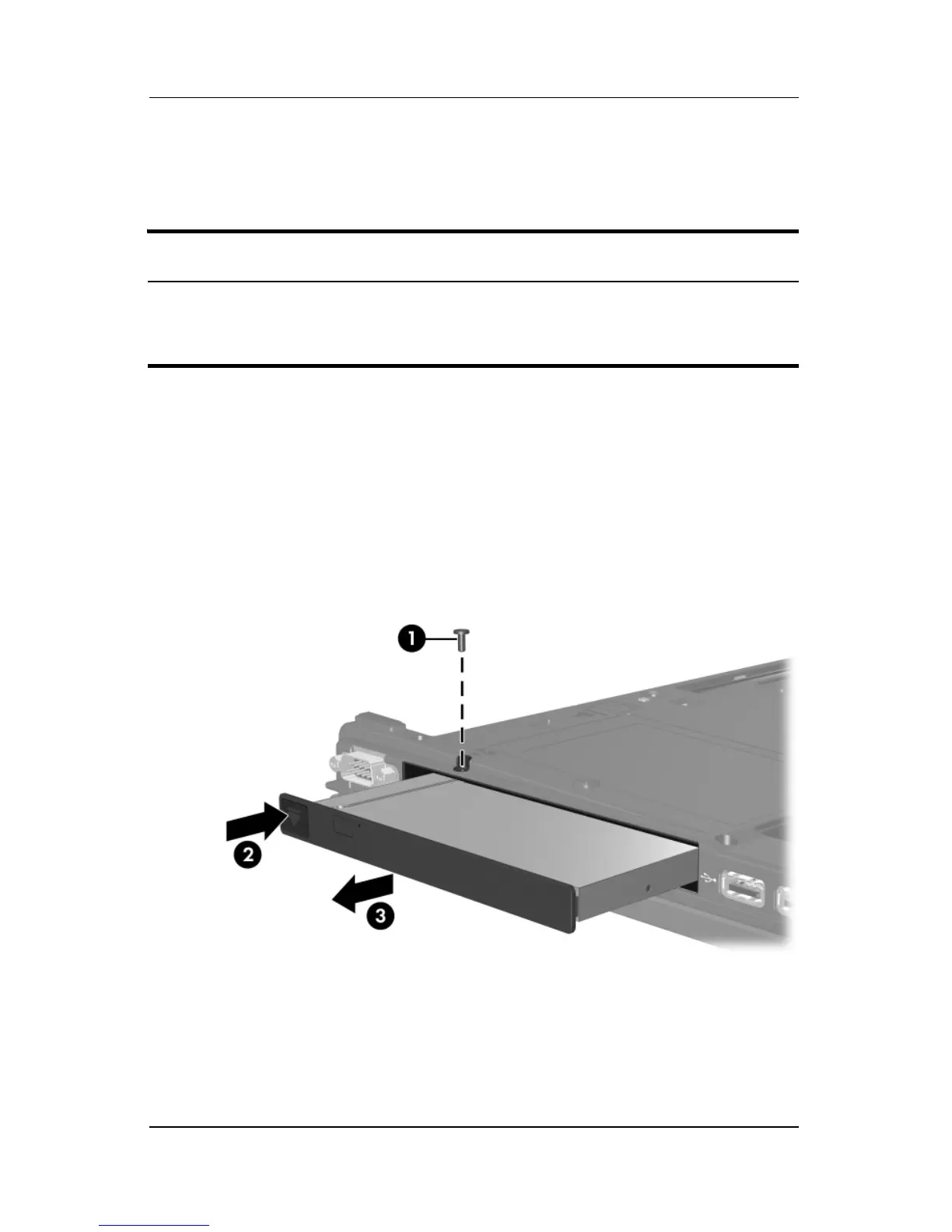

Removing the MultiBay II Device
Reverse the above procedure to install a MultiBay II device.
MultiBay II Device Spare Part Number Information
DVD-ROM drive
DVD+RW/R and CD-RW Combo Drive
DVD/CD-RW Combo Drive
373314-001
375557-001
373315-001
