Removal and Replacement Procedures
Maintenance and Service Guide 5–45
6. Position the notebook with the rear panel toward you.

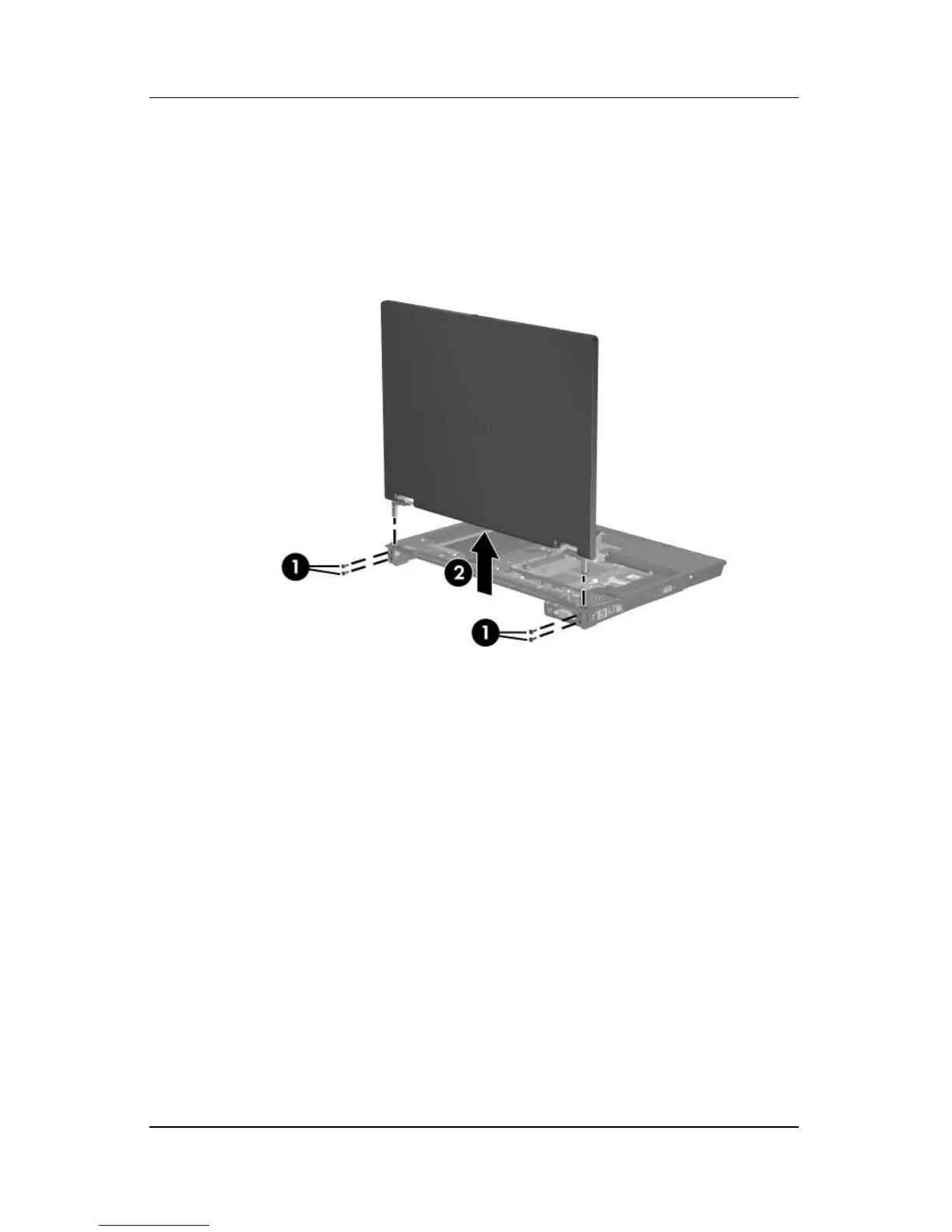

7. Remove the four T8M2.0×9.5 screws 1 that secure the
display assembly to the notebook.
8. Lift the display assembly straight up 2 to remove it.
Removing the Display
Reverse the above procedure to install the display assembly.
