5–4
8
Maintenance and Serv
ice Gui
de
Re
mo
val and R
eplacement Pr
ocedures
4.
T
urn the notebook right-side up with the front panel
to
ward
you.

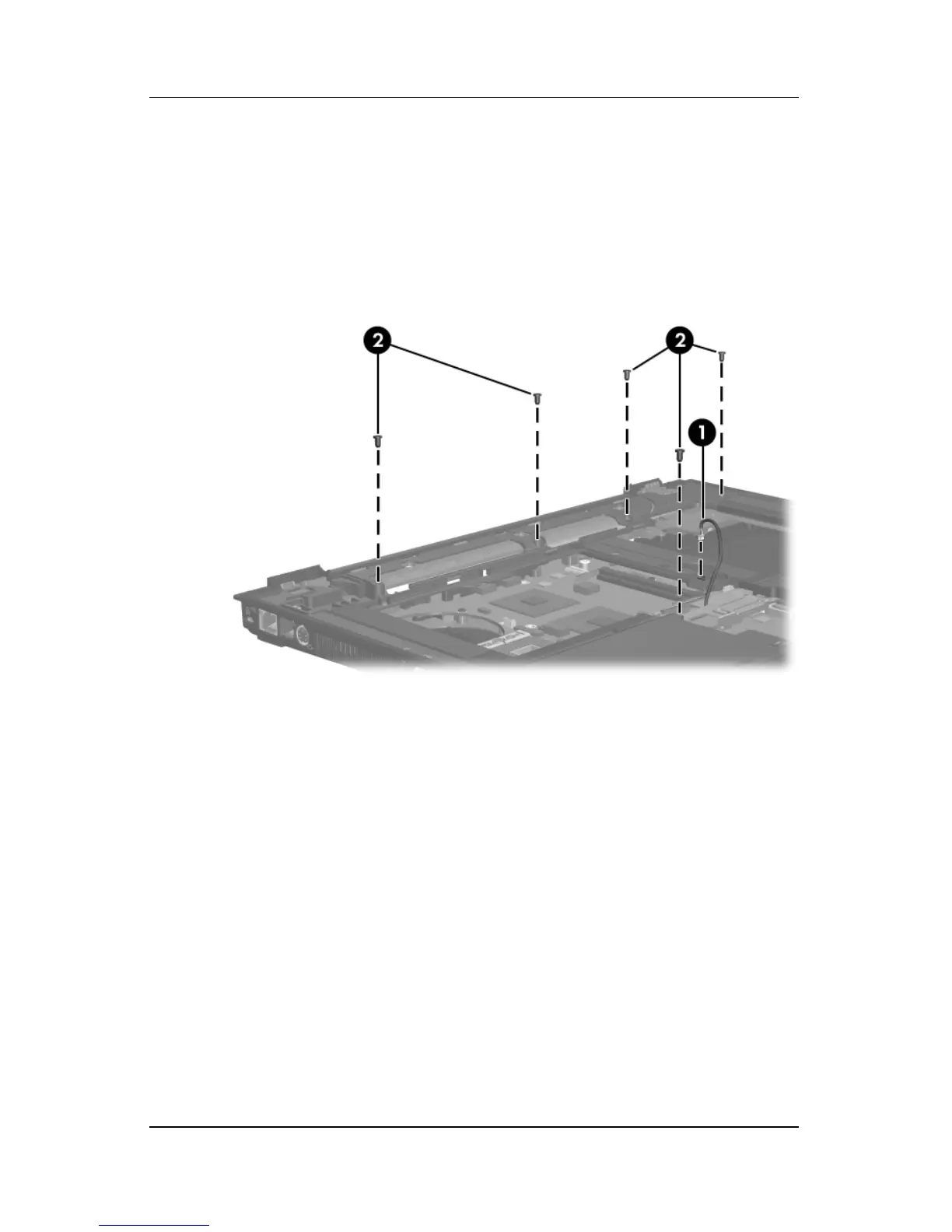

5.
Disconnect the speaker cable
1
from the system board.
6.
Remove the f
i
v
e T8M2.0×4.0 scre
ws
2
that secure the top
cov
er to the notebook.
R
emo
v
ing the T
op Co
v
er S
cr
ew
s
, P
art 2
133
135
