5–66 Maintenance and Service Guide
Removal and Replacement Procedures
2. Remove the two HM5.0×10.0 screw locks 1 that secure the
serial connector module to the system board frame.
3. Remove the serial connector module 2 from the system
board frame.

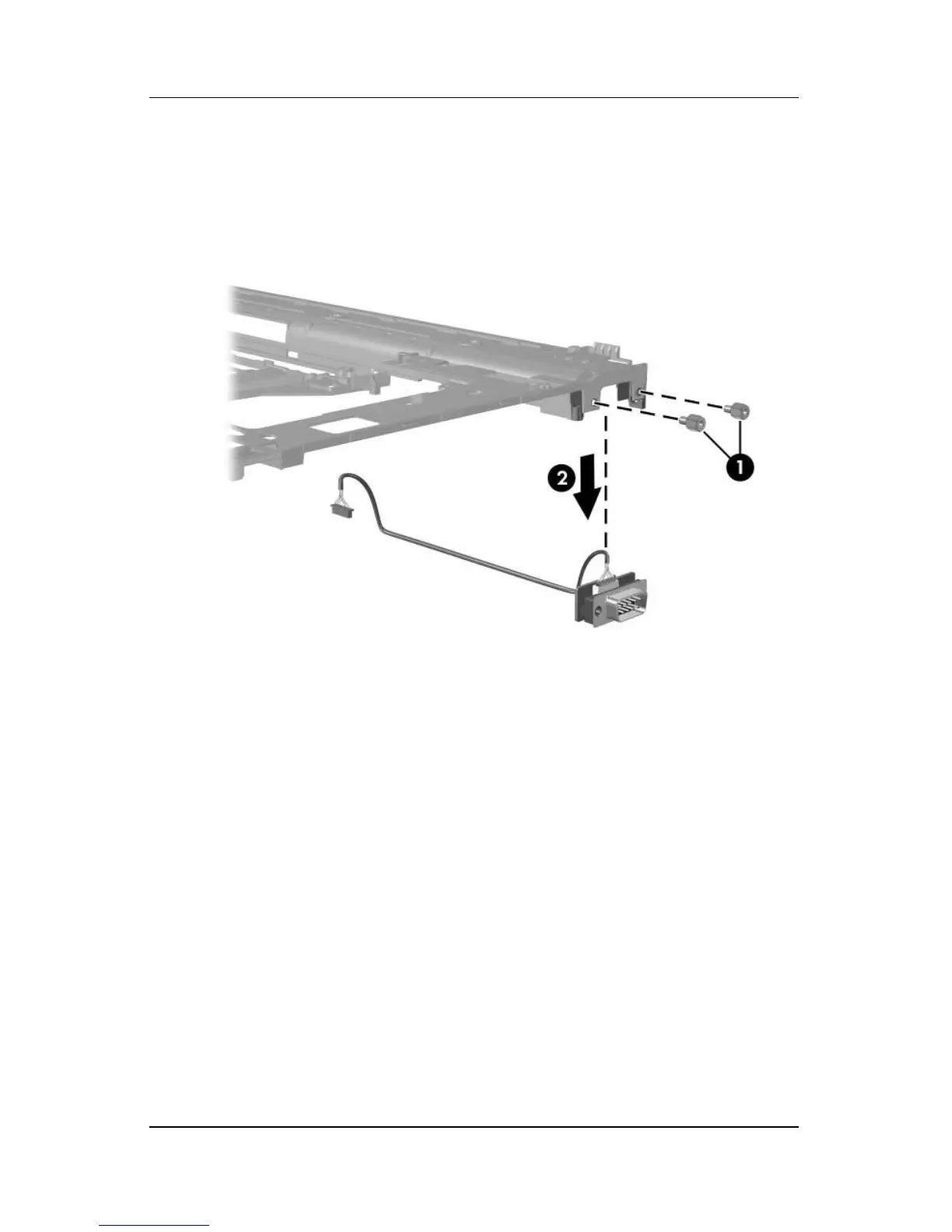

Removing the Serial Connector Module and Cable
Reverse the above procedure to install the serial connector
module.
