5–68 Maintenance and Service Guide
Removal and Replacement Procedures

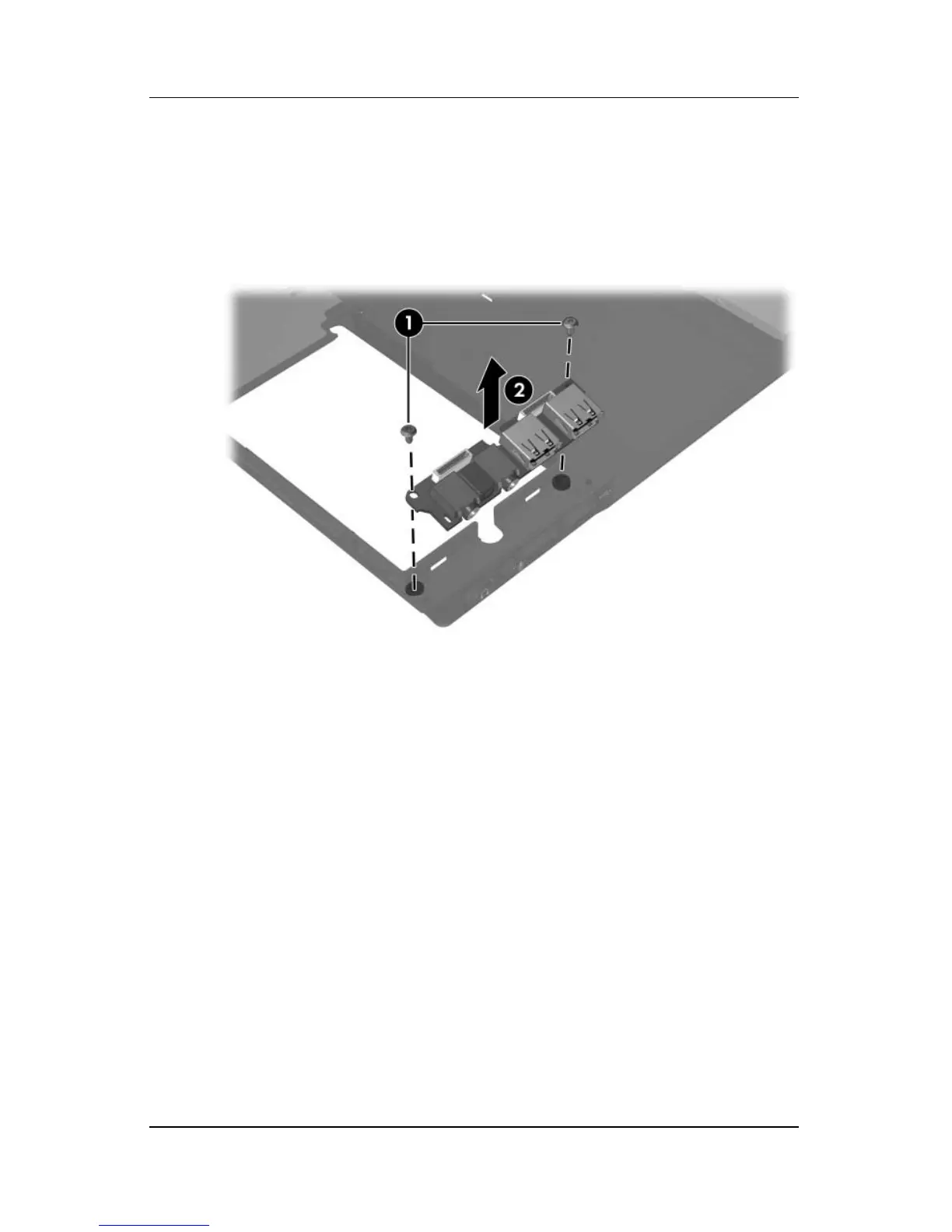

2. Remove the two T8M2.0×4.0 screws 1 that secure the audio
board to the base enclosure.
3. Lift the left side of the audio board 2 to disengage it from the
base enclosure.
Removing the Audio Board
Reverse the above procedure to install the audio board.
