Screw Listing
Maintenance and Service Guide C–11

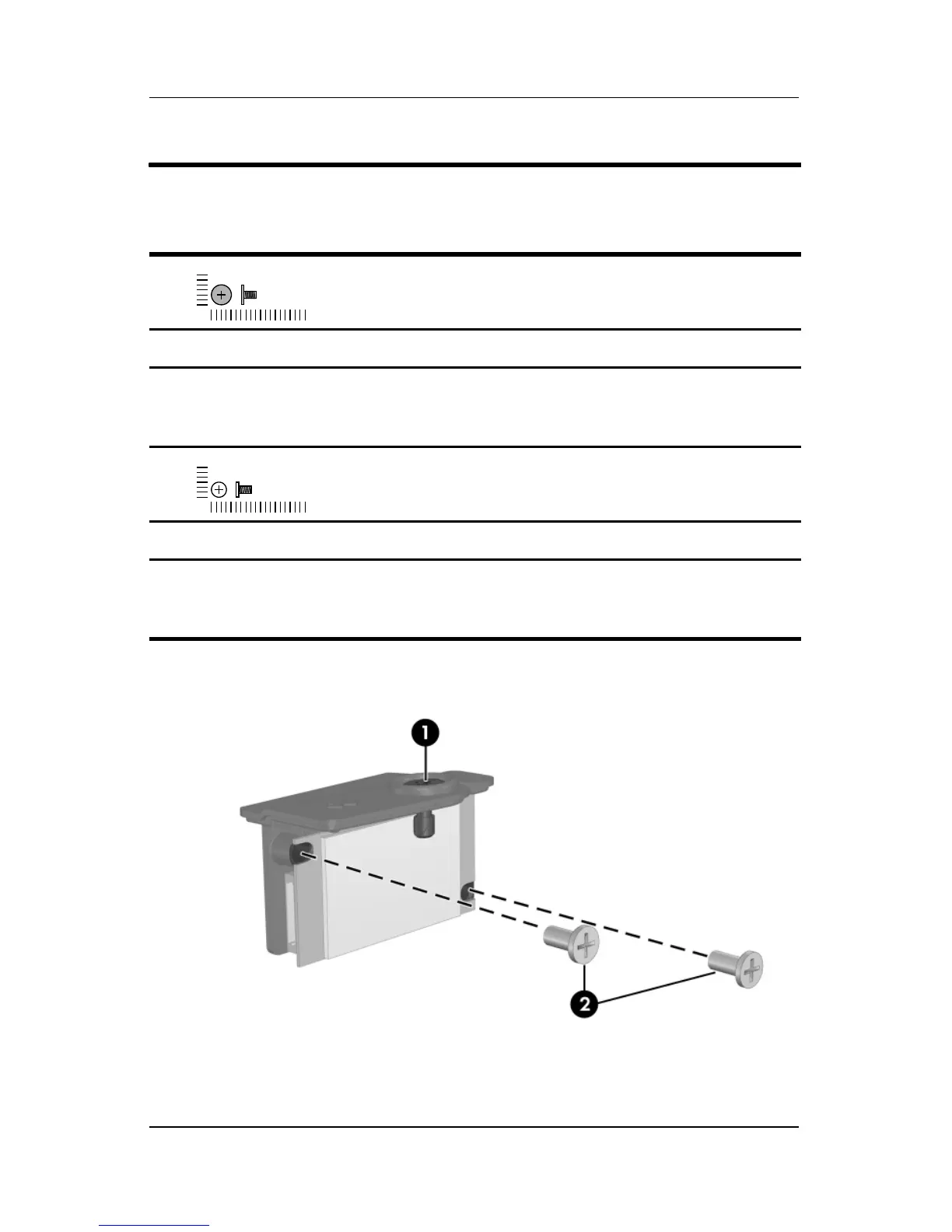

Phillips PM1.5×3.0 Screw Locations
Table C-7
Phillips PM1.5×3.0 Screw
Color Qty. Length Thread
Head
Width
Black 9 3.0 mm 1.5 mm 4.0 mm
Where used:
1 One black screw that secures the Bluetooth cover to the notebook (screw is
captured on the cover by a C clip; documented in Section 5.8)
Color Qty. Length Thread
Head
Width
Silver 9 3.0 mm 1.5 mm 3.0 mm
Where used:
2 Two silver screws that secure the Bluetooth board to the Bluetooth cover
(documented in Section 5.8)
mm
mm
To Next Page
