Screw Listing
Maintenance and Service Guide A–23

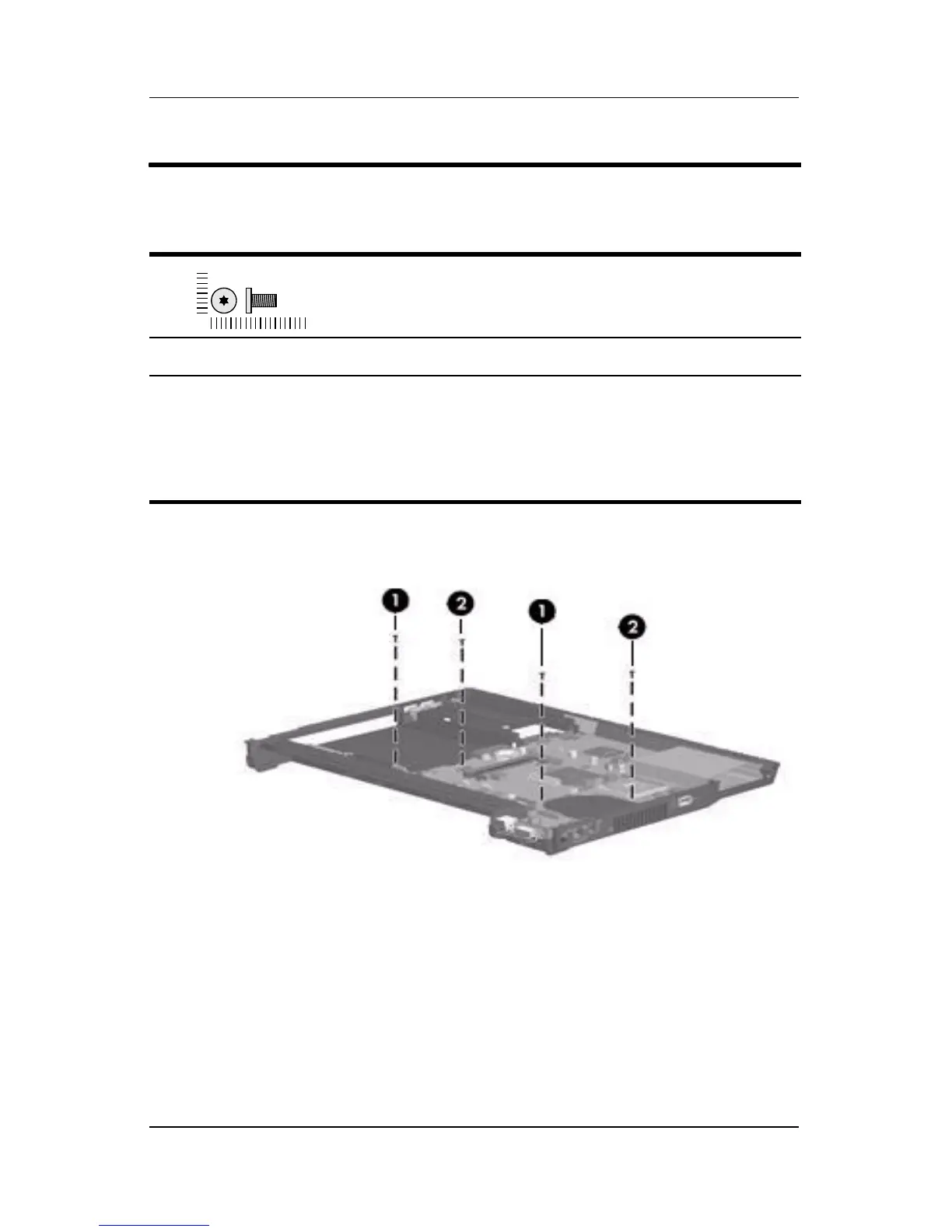

Torx8 T8M2.5×6.0 Screw Locations (defeatured model shown)
Table A-16
Torx8 T8M2.5×6.0 Screw
Color Qty. Length Thread
Head
Width
Black 2/4* 6.0 mm 2.5 mm 5.0 mm
Where used:
2 or 4 screws that secure the system board to the computer (documented in
Section 5.21). Full-featured models use 2 screws.
*Screws
1 and 2 on defeatured models. Only screws 1 on full-featured
models.
mm
