HP DL380

Hardware options installation 57
5.

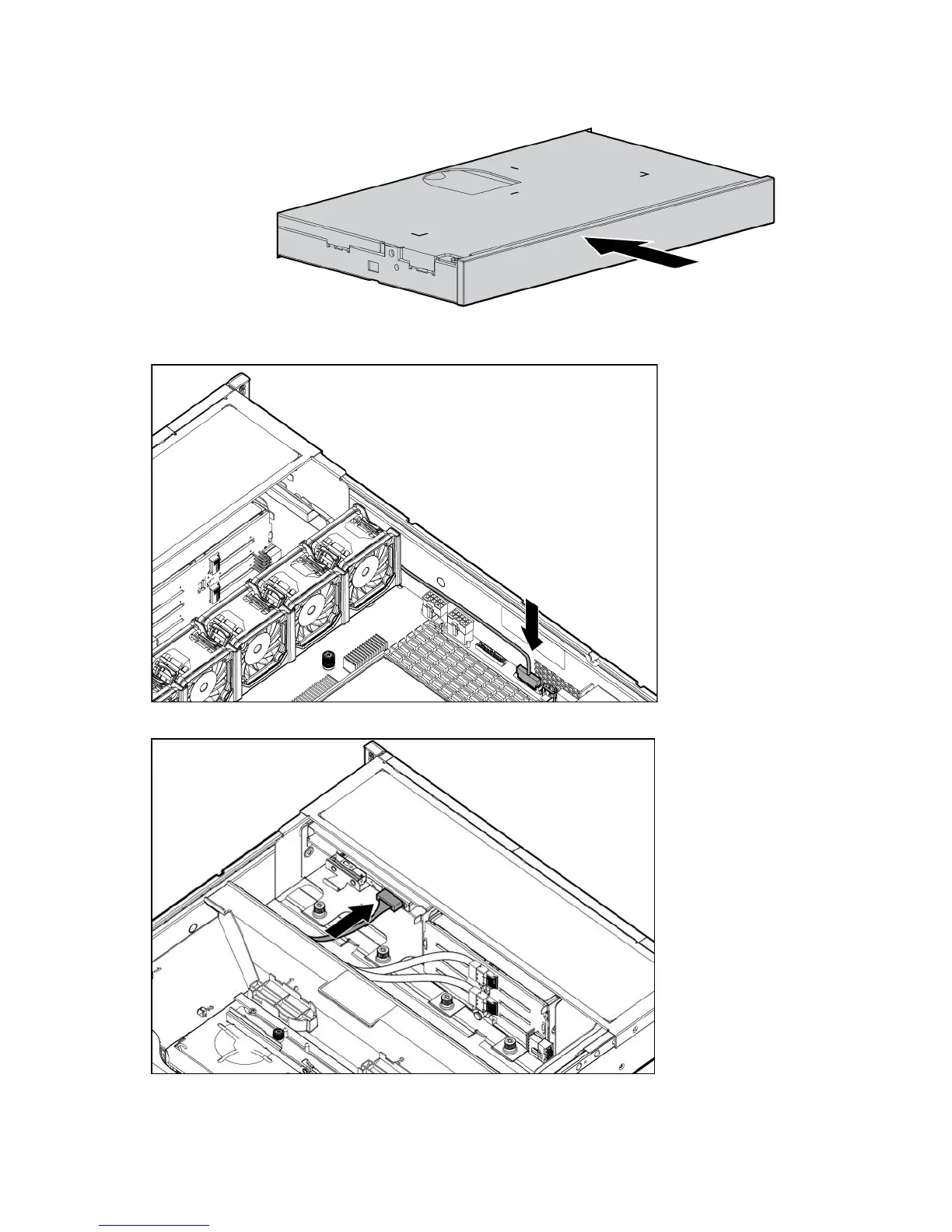

Slide the optical drive into the drive bay.
6. Connect the power and data cable to the system board. The air baffle is not shown for clarity.
7. Connect the power and data cable to the optical drive.
8. Install the access panel (on page 26).
