Removing an Optical Drive
CAUTION: All removable media should be taken out of a drive before removing the drive from the
computer.
To remove an optical drive:
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 83).
2. Remove the access panel (
Access Panel on page 84).
3. Remove the front bezel (
Front Bezel on page 85).

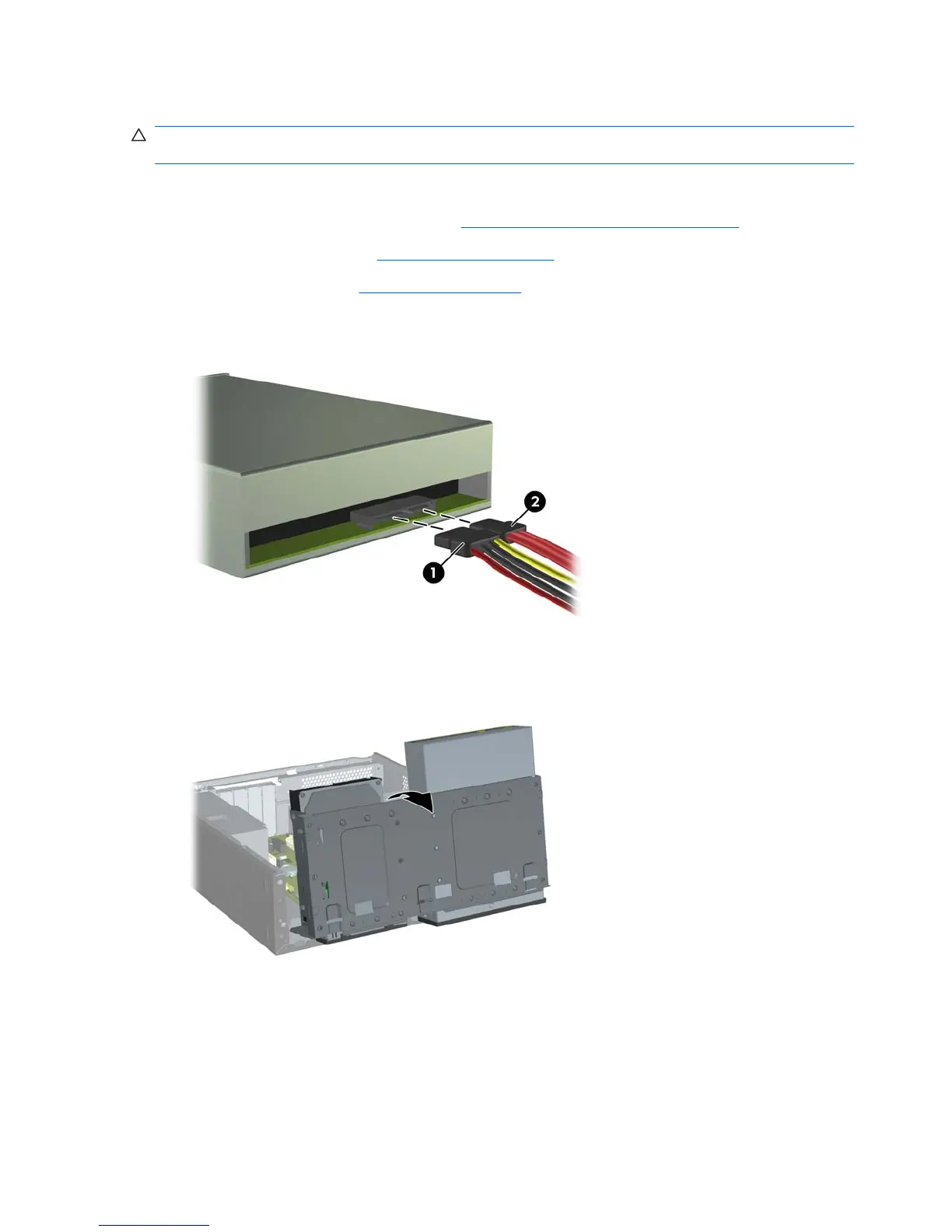

4. Disconnect the power cable (1) and data cable (2) from the rear of the optical drive.
Figure 8-7 Disconnecting the Power and Data Cables
5. Rotate the drive cage all the way up.
Figure 8-8 Rotating the Drive Cage Up
92 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
