HP dx2810 - Microtower PC - Port Cover

Port Cover

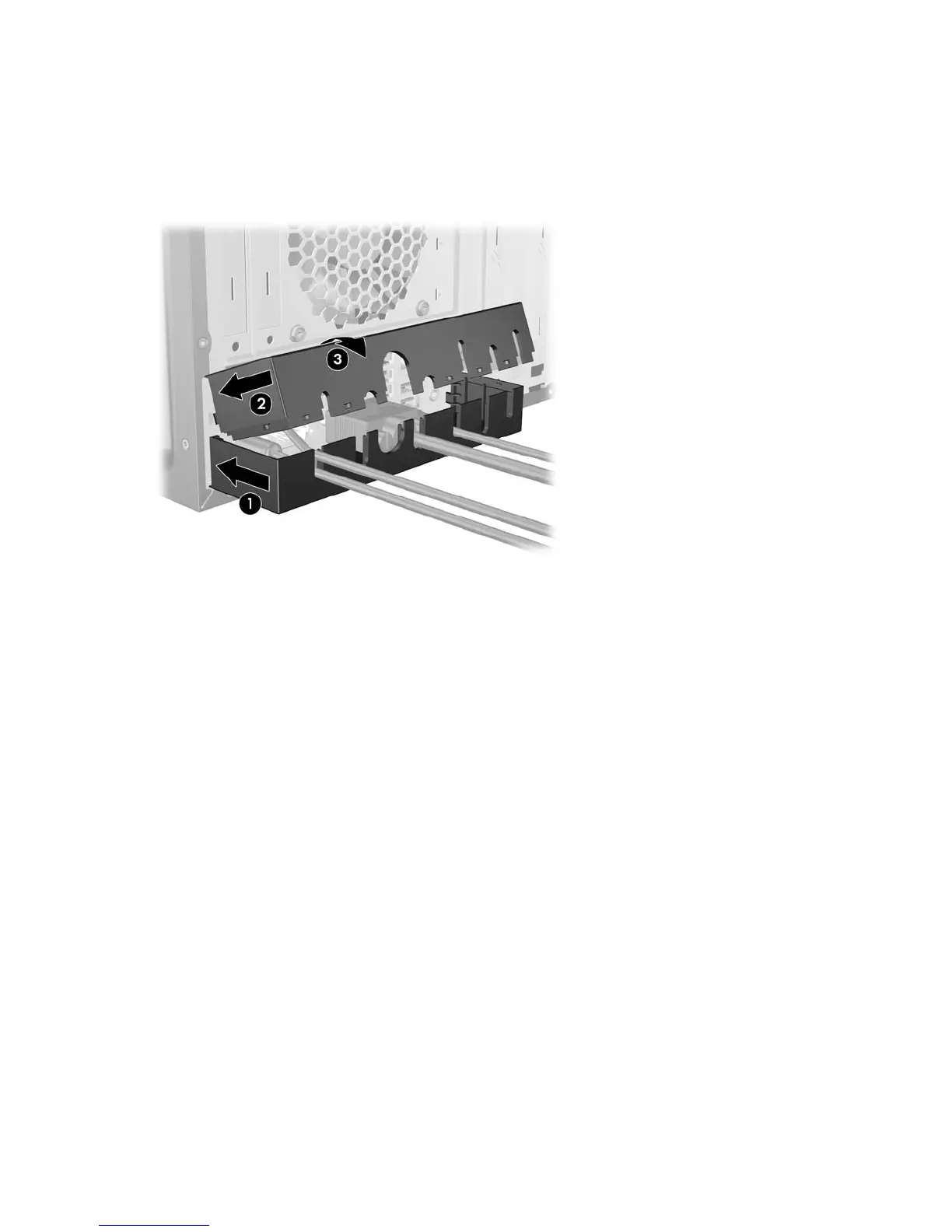

To install the port cover, slide the bottom half of the cover onto the chassis (1), then slide the top half
of the cover onto the chassis at an angle (2) then rotate the top half down onto the bottom half (3).
Ensure that the cables coming out of the rear of the computer are routed through the holes in the port
cover.
82 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
