7. Rotate the drive cage all the way up.

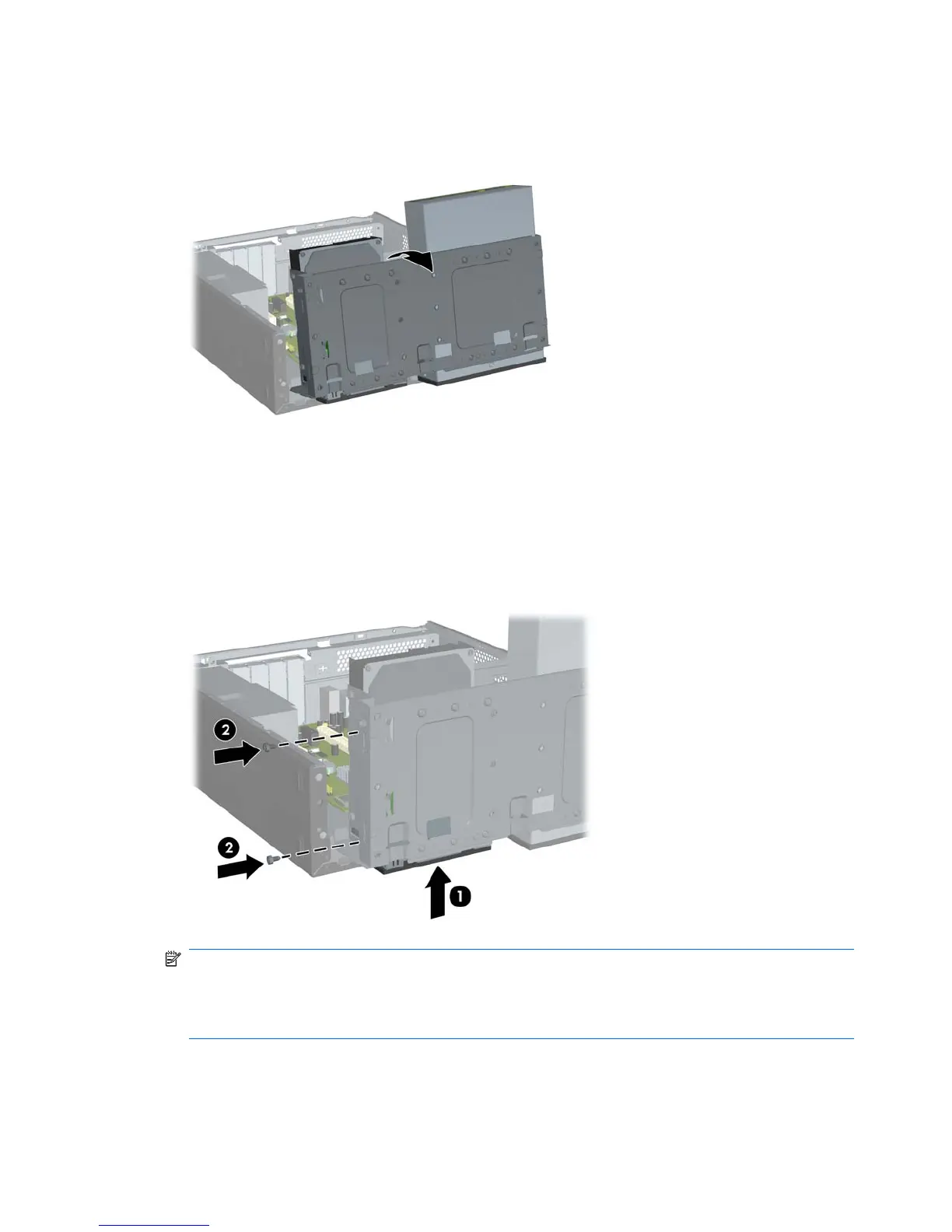

Figure 8-18 Rotating the Drive Cage Up
8. Slide the drive into the drive bay (1) until the two screw holes on the left side of the drive line up
with the two screw holes on the left side of the drive cage. Secure drive by fastening two retainer
screws through the holes in the left side of the drive cage into the corresponding holes in the left
side of the drive (2).
Figure 8-19 Installing a 3.5-inch Device (Diskette Drive Shown)
NOTE: The drive cage screw holes for each type of drive are labeled “CR” for media card reader
or “FDD” for diskette drive.
Extra retainer screws are provided on the front of the chassis under the hard drive cage. The M3
metric retainer screws for diskette drives or media card readers are black.
