HP dx2810 - Microtower PC - Page 111

5. Rotate the drive cage all the way up.

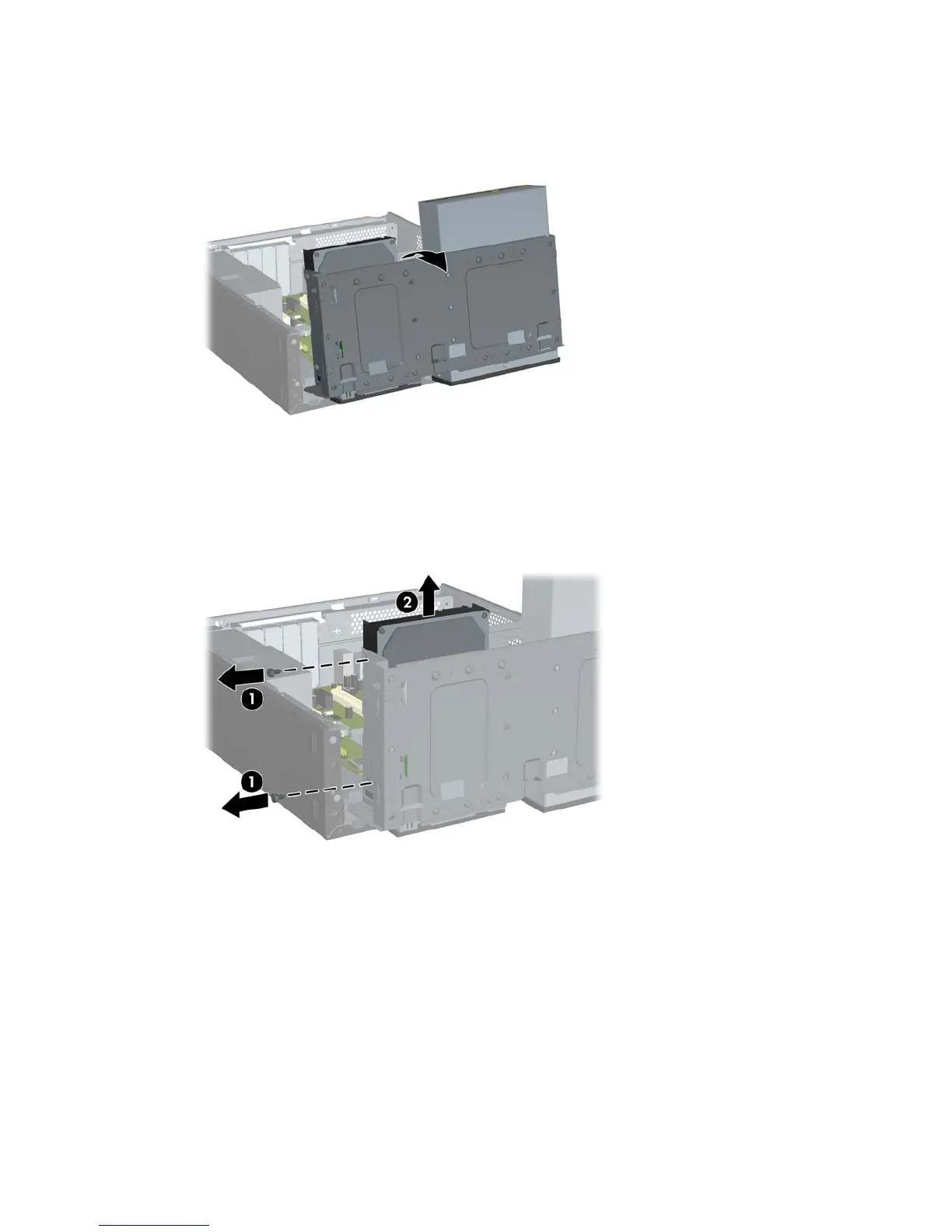

Figure 8-22 Rotating the Drive Cage Up
6. Remove the two retainer screws that secure the drive to the bay (1) then slide the drive back and
out of the bay (2).
Figure 8-23 Removing an Internal Hard Drive
Drives 101
