HP E243M Maintenance And Service Guide

10
3 Illustrated parts catalog
To identify the monitor major components, use this illustration and table.

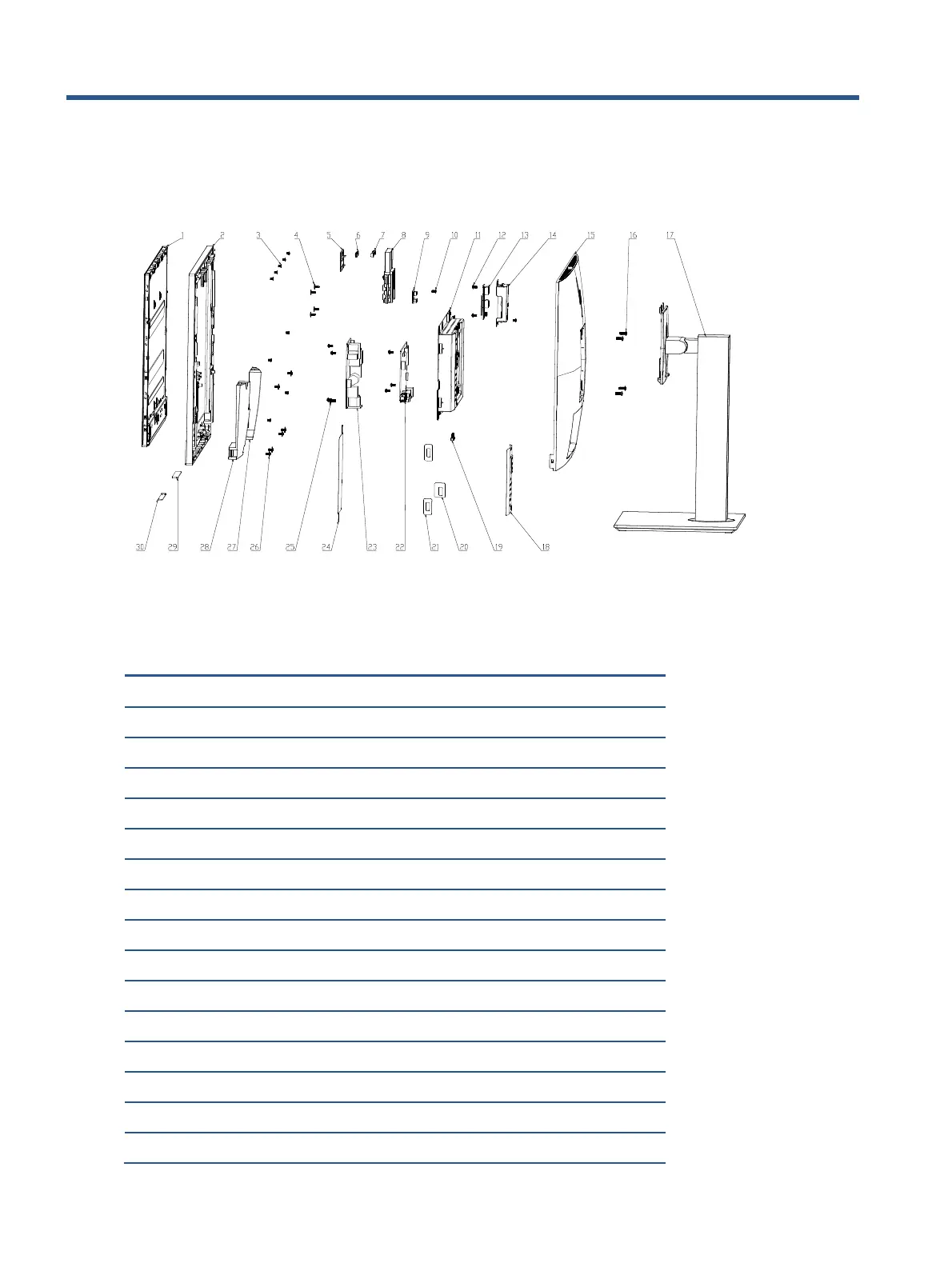

Mechanical explosion
Item
Description
Qty
1
PANEL
1
2
ASSY, BEZEL, ASTROID, WBP, BOE-EC, E243m
1
3
SCREW, I, CROSS, M3*4 ZN-CC
10
4
SCREW, I, CROSS, T3*8, Zn
4
5*
ASSY, POP-UP MODULE, NEW, E243m
1
6
Webcam
1
7*
ASSY, POP-UP MODULE, NEW, E243m
1
8*
ASSY, POP-UP MODULE, NEW, E243m
1
9
Webcam Control Board
1
10
SCREW, I, CROSS T, T3*6 ZN CC
6
11
ASSY, CHASSIS, E243m, LP24QA
1
12
SCREW, P, CROSS M3*6, ZN-CC
8
13
Side USB Board
1
14
ASSY, USB COVER, E243m, LP24QA
1
15
ASSY, BUCKET, JACK BLACK, E243m, LP24QA
1
16
SCREW, I, CROSS, M4*10, BLK-NL
4

HP E243M Specifications

General

Display Size	23.8 inches
Resolution	1920 x 1080 (Full HD)
Panel Type	IPS
Aspect Ratio	16:9
Brightness	250 cd/m²
Contrast Ratio	1000:1
Response Time	5 ms (gray to gray)
Refresh Rate	60 Hz
Viewing Angle	178° horizontal / 178° vertical
Color Gamut	72% NTSC
Height Adjustment	Yes
Ports	1 x VGA
Built-in Speakers	Yes
Webcam	Yes
VESA Mount	100 x 100 mm
