1) Use a soldering iron and a desoldering pump to remove as much solder as possible from the pin.

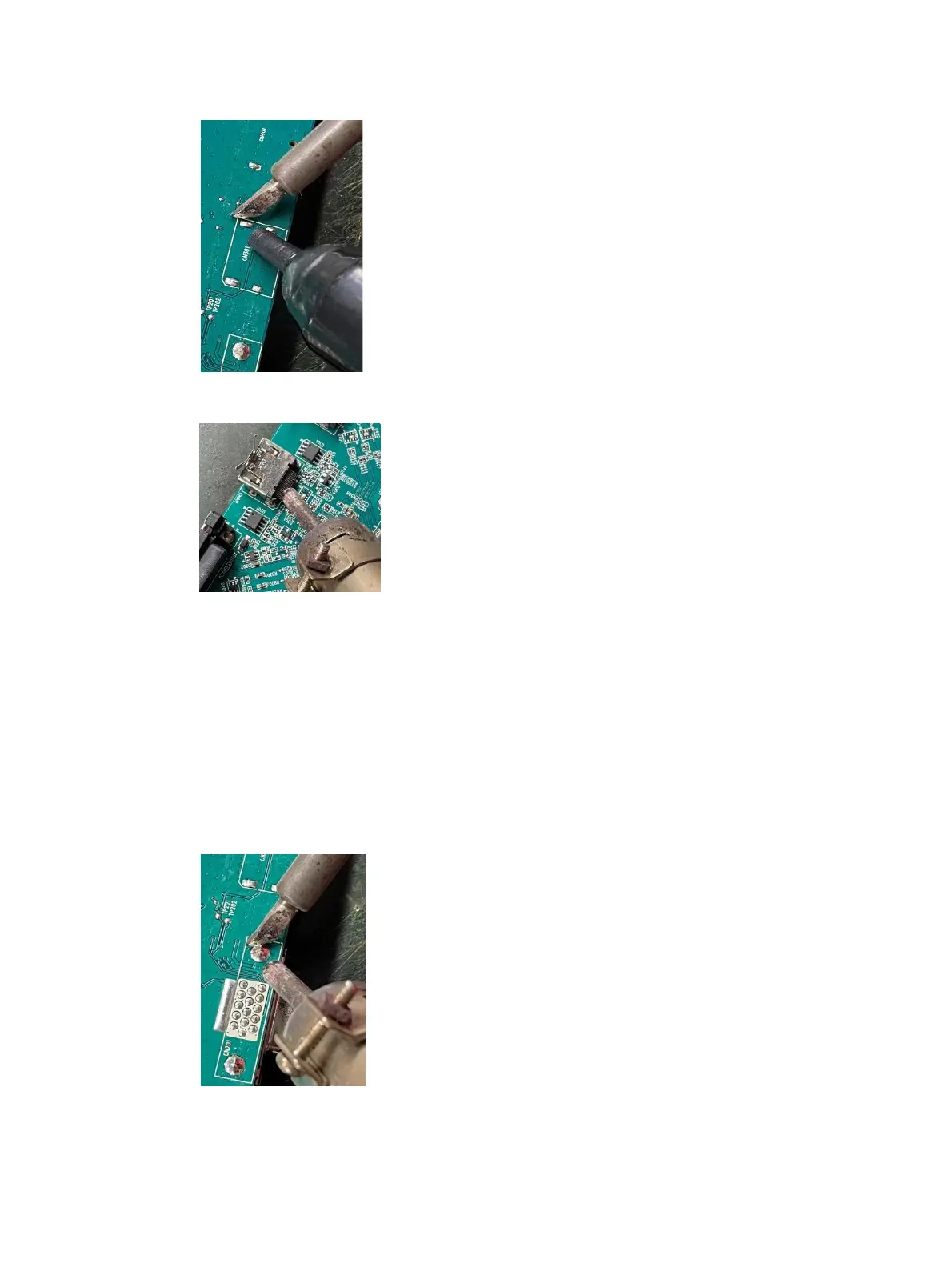

HDMI connector repairing
2) Use a hot air gun to melt the solder on the pins.
HDMI connector repairing
3) Lift the J2 connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
VGA connector CN201
Repair the DP connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently
push down with the soldering iron once everything is molten to move the CN201 out of the through holes.
VGA (D-Sub) connector repairing
2) Lift the CN201 connector from the PCB.
