Connector repair
This procedure includes HDMI, Display Port, VGA, audio in, headphone, USB upstream and USB connectors.
The connectors are on the main board (board part number 790NQ1300***H01) and USB side board (board part
number 790NQ0300***H0*).
The connectors’ identifiers are as follows:
Connector
Location
HDMI
CN301
DisplayPort
CN401
Audio in
CN502
USB upstream
CN602

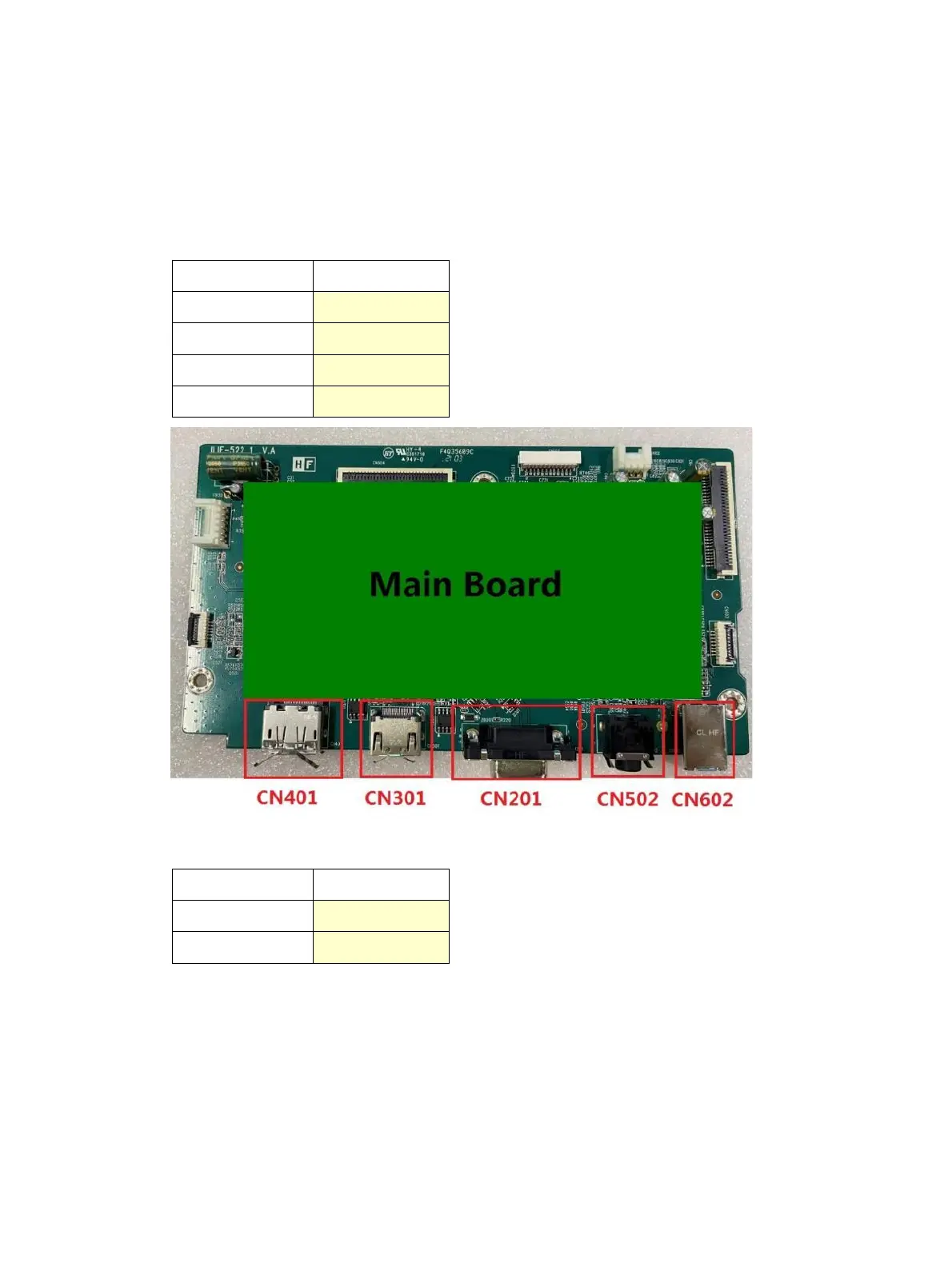

Connector location showing of main board
Connector
Location
USB
P101,P102
Headphone
CN101
