HP E24d G4

EL-MF877-00 Page 4
Template Revision C
Last revalidation date 09-May-2018
HPI instructions for this template are available at EL-MF877-01

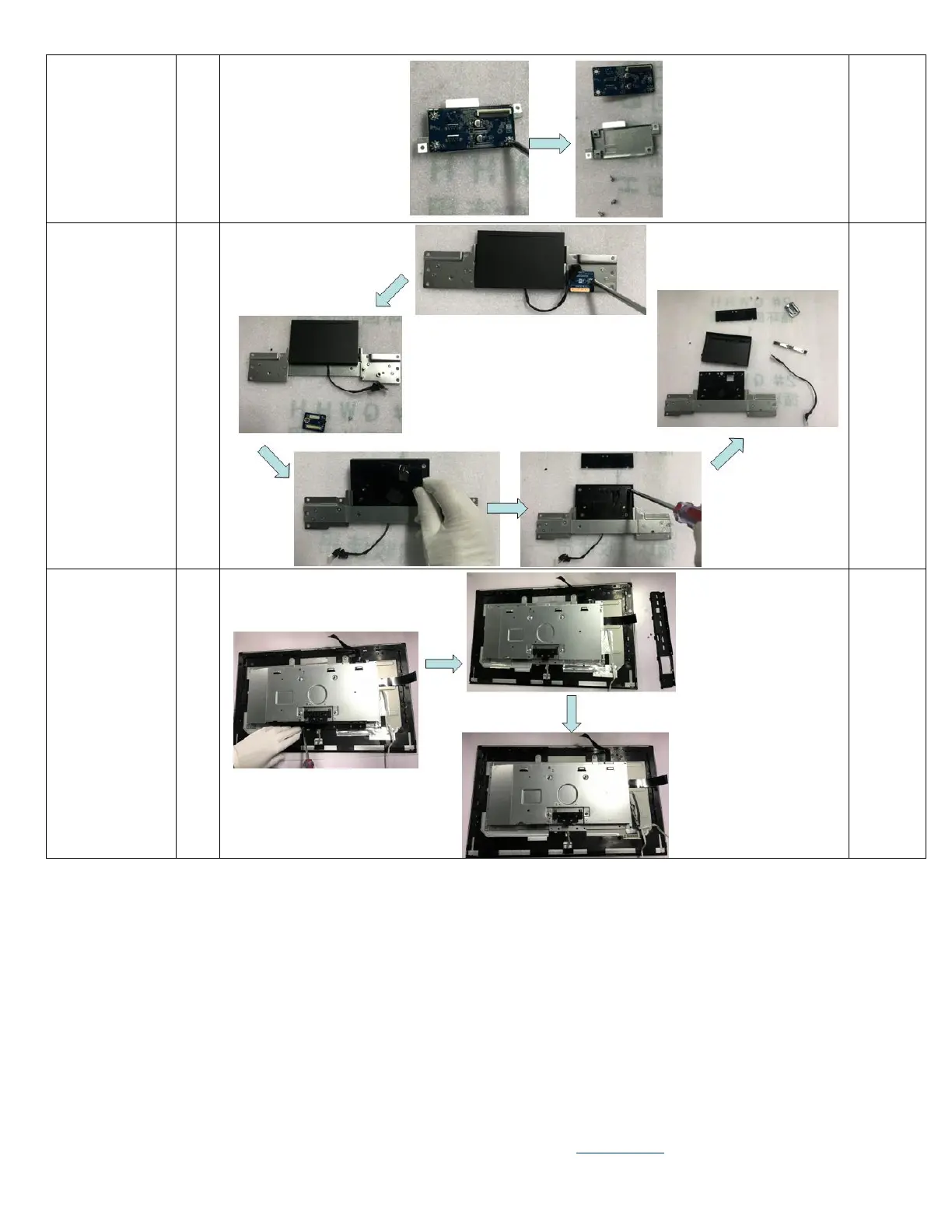

Disassemble
Side USB Chasis
Assembly:
Release all
screws that fixed
on chassis then
to take out the
PCB Board
Scre
w
Driv
er(P
H2)
7
Disassemble
Webcam
Assembly:
Release the
screw that fixed
on PCB and peel
camera PMMA
glass use
tool/hand,then
disassemble
webcam assy and
take out the
camera PCB
Scre
w
Driv
er(P
H2)
8
Disassemble
IO Cover:
Release the
screws that fixed
on Panel and peel
off all Foils
Scre
w
Driv
er(P
H2)
