HP E24d G4 Disassembly Instructions

EL-MF877-00 Page 5
Template Revision C
Last revalidation date 09-May-2018
HPI instructions for this template are available at EL-MF877-01

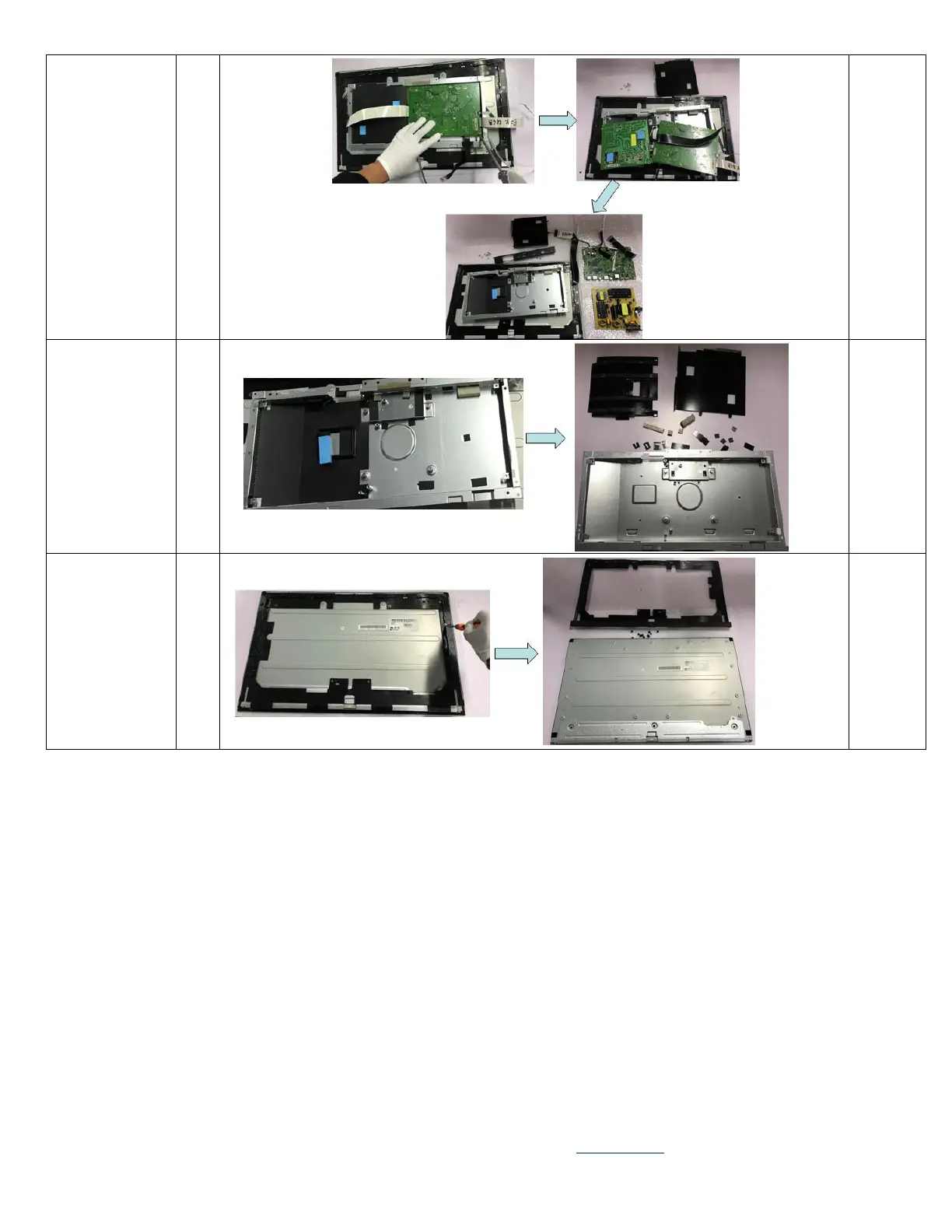

Disassemble
Chasis PCB:
Release the
screw that fixed
on PCB and peel
off mylar/rubber
Scre
w
Driv
er(P
H2)
Disassemble
Chasis
Assembly:
Peel off all the
mylar and Gasket
N/A
Disassemble
Middle-frame:
Release all the
screws that fixed
on Middle-frame
Scre
w
Driv
er

HP E24d G4 Specifications

General

3D	No
Color gamut	72 %
Pixel pitch	0.274 x 0.274 mm
Screen shape	Flat
Display diagonal	23.8 \
Display technology	-
Native aspect ratio	16:9
Maximum refresh rate	- Hz
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1000:1
Digital vertical frequency	0 - 60 Hz
Digital horizontal frequency	0 - 80 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Pivot angle	-90 - 90 °
Plug and Play	Yes
Tilt angle range	-5 - 20 °
Panel mounting interface	100 x 100 mm
HDMI version	1.4
DisplayPort version	1.2
USB Power Delivery up to	100 W
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	4
AC input voltage	100 - 240 V
Energy efficiency scale	A to G
Power consumption (max)	175 W
Power consumption (standby)	0.5 W
Power consumption (typical)	70 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	DisplayPort, HDMI, USB Type-C
Package depth	269 mm
Package width	646 mm
Package height	438 mm
Package weight	11000 g
HP segment	Business
Product color	Gray
Country of origin	China
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	206.8 mm
Width (with stand)	539.4 mm
Height (with stand)	486.4 mm
Weight (with stand)	6860 g
Depth (without stand)	48.5 mm
Height (without stand)	323.3 mm
Weight (without stand)	4100 g
