HP E24i G4 User Manual

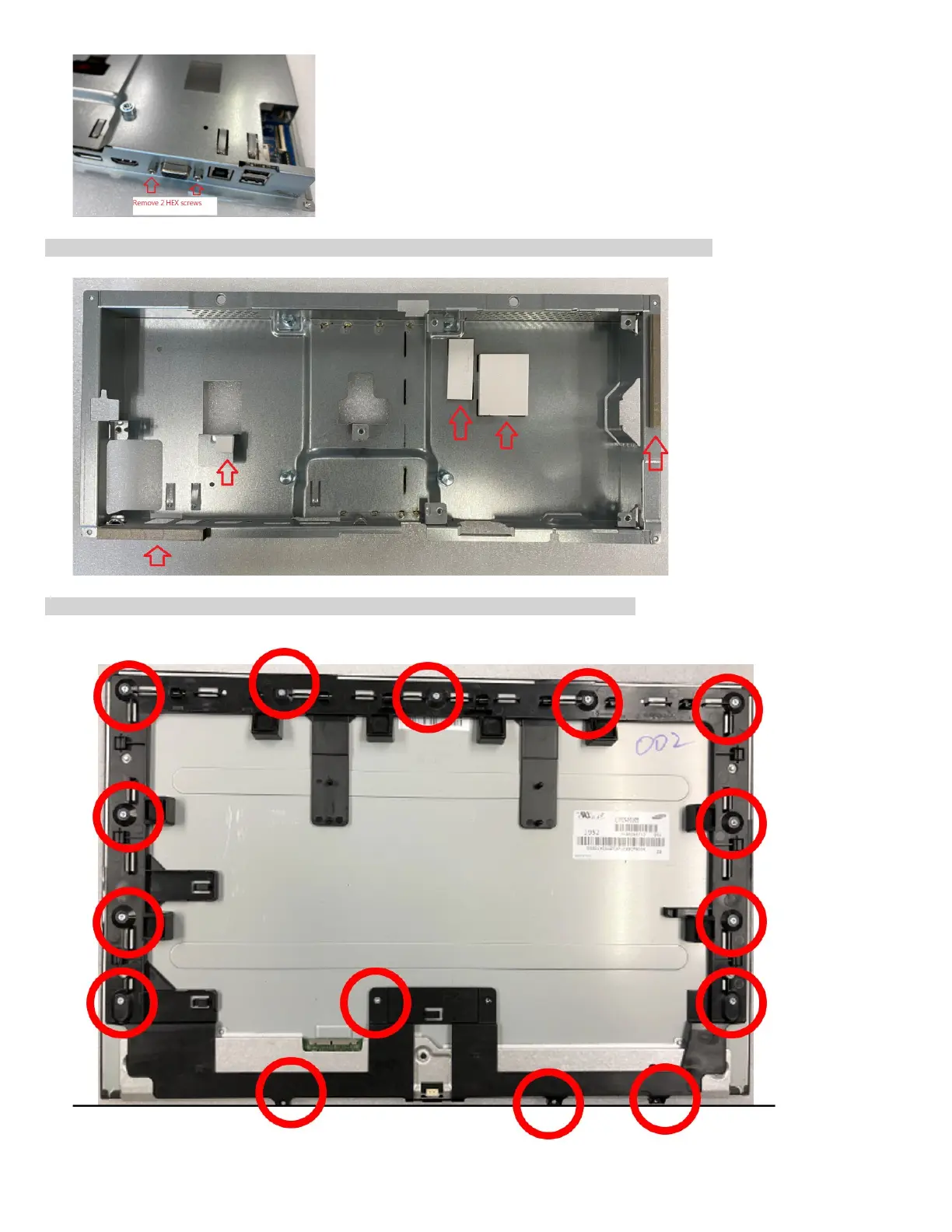

8. Remove all the gaskets, thermal pad, mylar, spacer on shielding. Remove all cable on PCBs.
9. Loosen 15 screws on middle frame and decoration to remove the deco and panel.

HP E24i G4 Specifications

General

HD type	WUXGA
Color gamut	99 %
Pixel pitch	0.27 x 0.27 mm
Screen shape	Flat
Pixel density	94 ppi
Display diagonal	24 \
Display resolution	1920 x 1200 pixels
Display technology	-
Native aspect ratio	16:10
Maximum refresh rate	60 Hz
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1000:1
Digital vertical frequency	50 - 60 Hz
Digital horizontal frequency	30 - 80 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
HP segment	Business
Certification	BIS; BSMI; CB; CCC; CE; CECP; CEL; EAC; ENERGY STAR®; FCC; ISO 9241-307; KC/KCC; NOM; PSB; SEPA; TCO Certified; TCO Certified Edge; TUV LBL; TUV-S; VCCI; WEEE; ISC; California Energy Commission (CEC); WW application; ICE; TGM; TUV-GS
Product color	Black, Silver
Country of origin	China
HDMI version	1.4
USB hub version	3.2 Gen 1 (3.1 Gen 1)
Built-in USB hub	Yes
DisplayPort version	1.2
USB upstream port type	USB Type-B
USB Type-A downstream ports quantity	4
Pivot angle	-90 - 90 °
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
Power consumption (max)	53 W
Power consumption (standby)	0.5 W
Power consumption (typical)	36 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Package depth	420 mm
Package width	605 mm
Package height	224 mm
Package weight	9120 g
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	206.9 mm
Width (with stand)	532 mm
Height (with stand)	509.6 mm
Weight (with stand)	6060 g
Depth (without stand)	47 mm
Height (without stand)	352.7 mm
