HP E27u User Manual

12

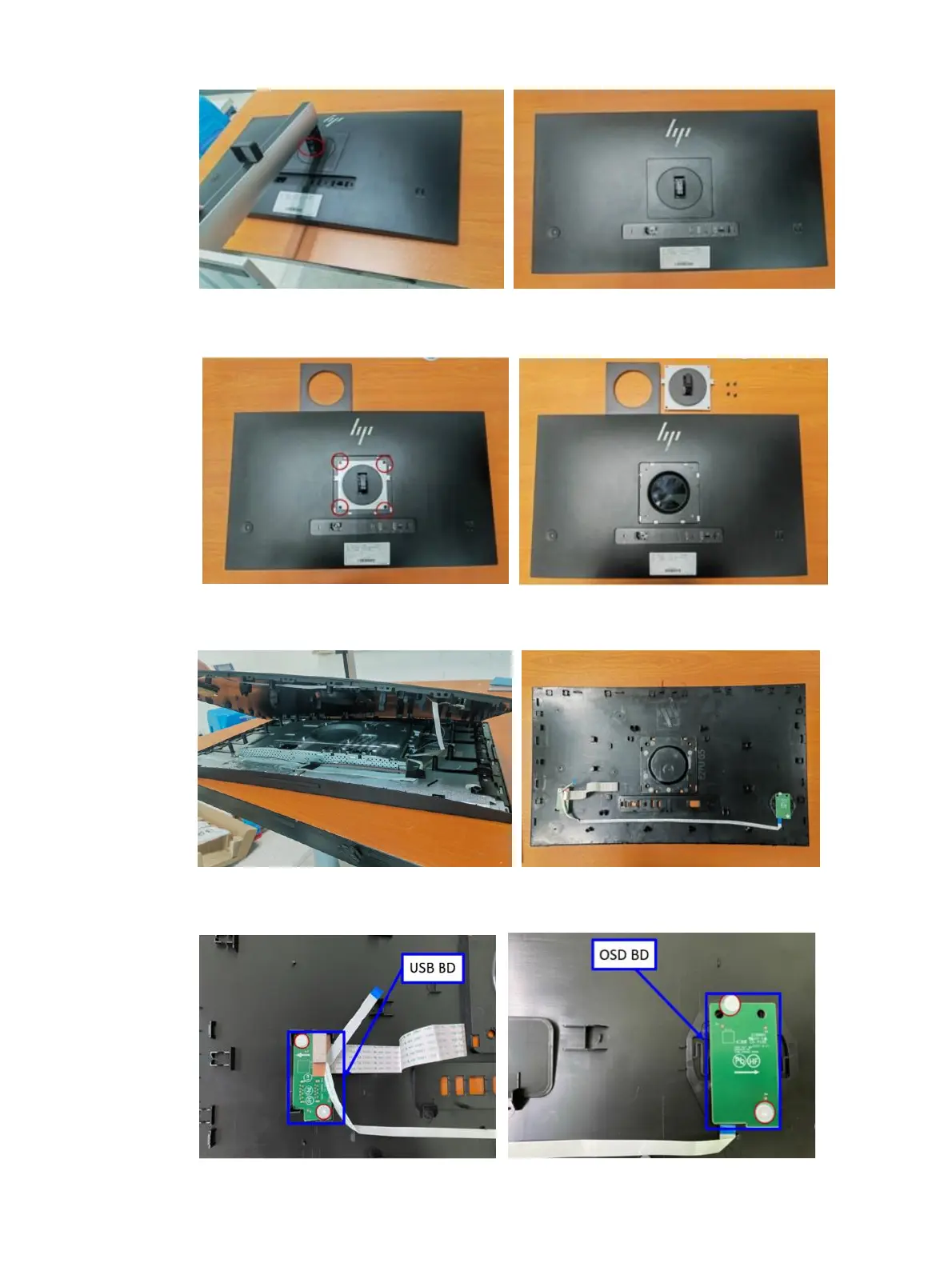

2) Remove VESA cover. Use tool to remove 4pcs screws for releasing Hinge Assy from Display Head。
3) Disconnect the USB cable and OSD key cable , then remove rear cover from the display head.
4) Release the two screws for removing the USB BD. Remove OSD BD from the hook of the rear cover.

HP E27u Specifications

General

Display Size	27 inches
Resolution	2560 x 1440 (QHD)
Panel Type	IPS
Aspect Ratio	16:9
Brightness	350 cd/m²
Refresh Rate	60 Hz
Contrast Ratio	1000:1
Viewing Angle	178° horizontal / 178° vertical
HDCP Support	Yes
Integrated Speakers	No
Height Adjustment	Yes
Tilt	-5° to +20°
VESA Mount	100 x 100 mm
Color Gamut	99% sRGB
Response Time	5 ms
Ports	1 x HDMI 1.4, 1 x DisplayPort 1.2, 1 x USB-C, 4 x USB-A 3.2
Pivot	Yes
Swivel	±45°
Weight	6.7 kg (without stand); 8.8 kg (with stand)
