13

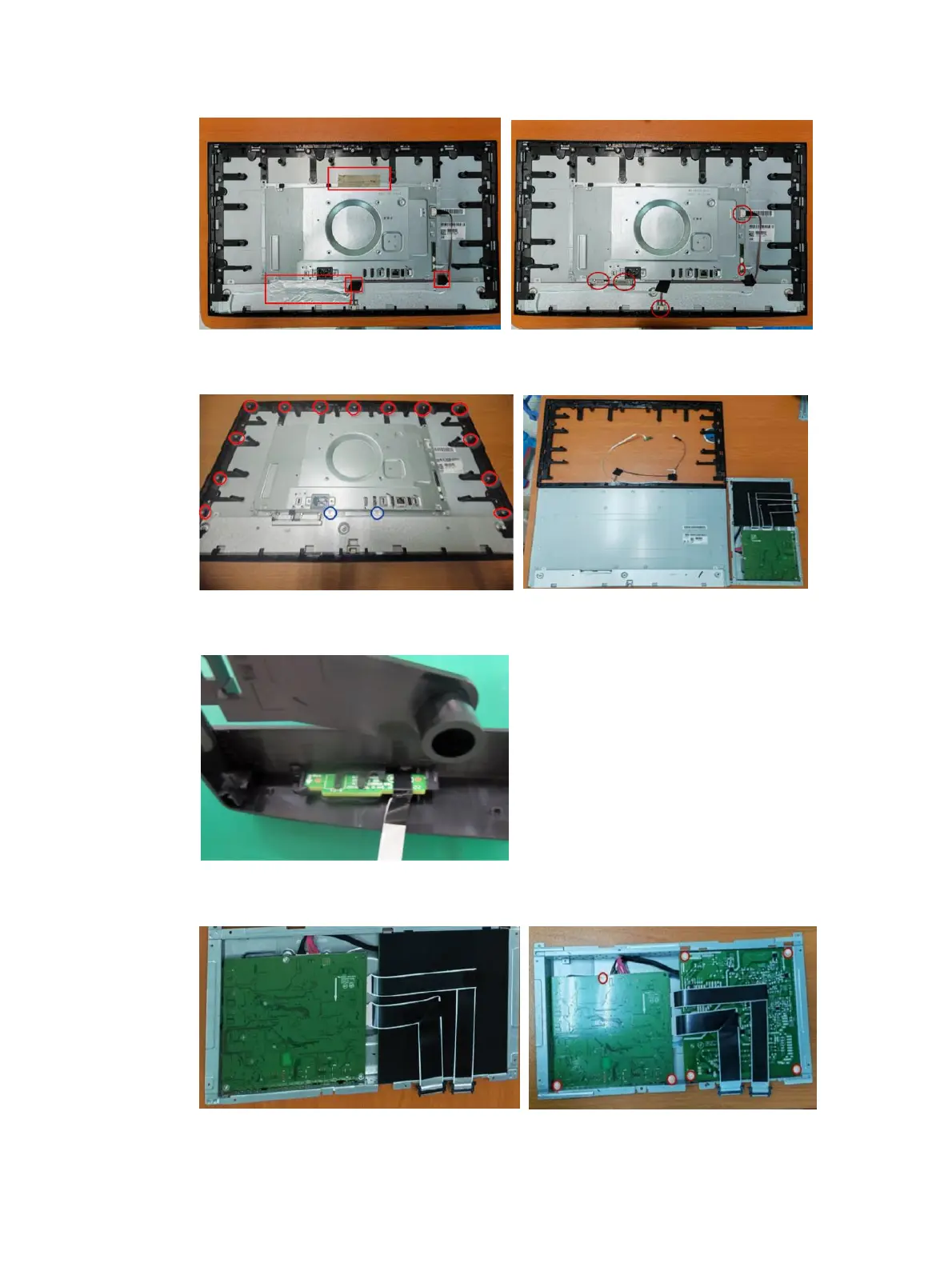

5) Remove aLL AI foil and tapes. Disconnect LVDS cable, power key cable and panel lamp cable.
6) Remove all the screws. Release middle frame and main chassis module away from panel.
7) Tear off mylar tape and release power key board from the hook of the middle frame.
8) Remove the safety Mylar, then release the seven screws from the interface BD and power BD

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP E27u and is the answer not in the manual?

HP E27u Specifications

General IconGeneral
Display Size27 inches
Resolution2560 x 1440 (QHD)
Panel TypeIPS
Aspect Ratio16:9
Brightness350 cd/m²
Refresh Rate60 Hz
Contrast Ratio1000:1
Viewing Angle178° horizontal / 178° vertical
HDCP SupportYes
Integrated SpeakersNo
Height AdjustmentYes
Tilt-5° to +20°
VESA Mount100 x 100 mm
Color Gamut99% sRGB
Response Time5 ms
Ports1 x HDMI 1.4, 1 x DisplayPort 1.2, 1 x USB-C, 4 x USB-A 3.2
PivotYes
Swivel±45°
Weight6.7 kg (without stand); 8.8 kg (with stand)
