HP E27u User Manual

14

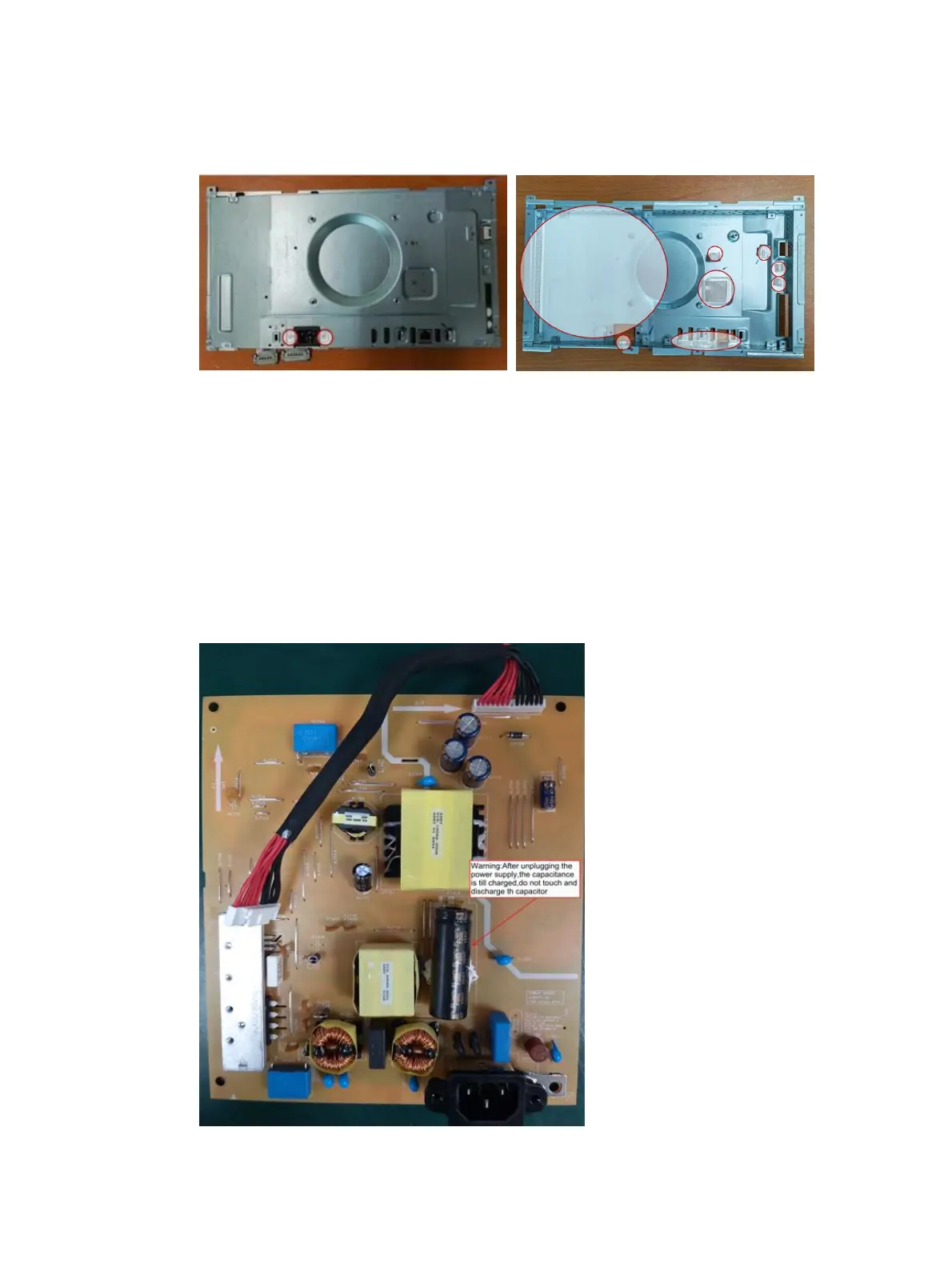

9) Remove 2pcs screws for unlocking the AC outlet. Remove the power BD and Interface BD from the chassis.
Power board
The power board part number is 755.09S02.0001.
Before removing the power board, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 11.
Remove the power board:
1) The HP E24u G4 power board connector position is as follows:
2) Locate the part number location on the board.

HP E27u Specifications

General

Display Size	27 inches
Resolution	2560 x 1440 (QHD)
Panel Type	IPS
Aspect Ratio	16:9
Brightness	350 cd/m²
Refresh Rate	60 Hz
Contrast Ratio	1000:1
Viewing Angle	178° horizontal / 178° vertical
HDCP Support	Yes
Integrated Speakers	No
Height Adjustment	Yes
Tilt	-5° to +20°
VESA Mount	100 x 100 mm
Color Gamut	99% sRGB
Response Time	5 ms
Ports	1 x HDMI 1.4, 1 x DisplayPort 1.2, 1 x USB-C, 4 x USB-A 3.2
Pivot	Yes
Swivel	±45°
Weight	6.7 kg (without stand); 8.8 kg (with stand)
