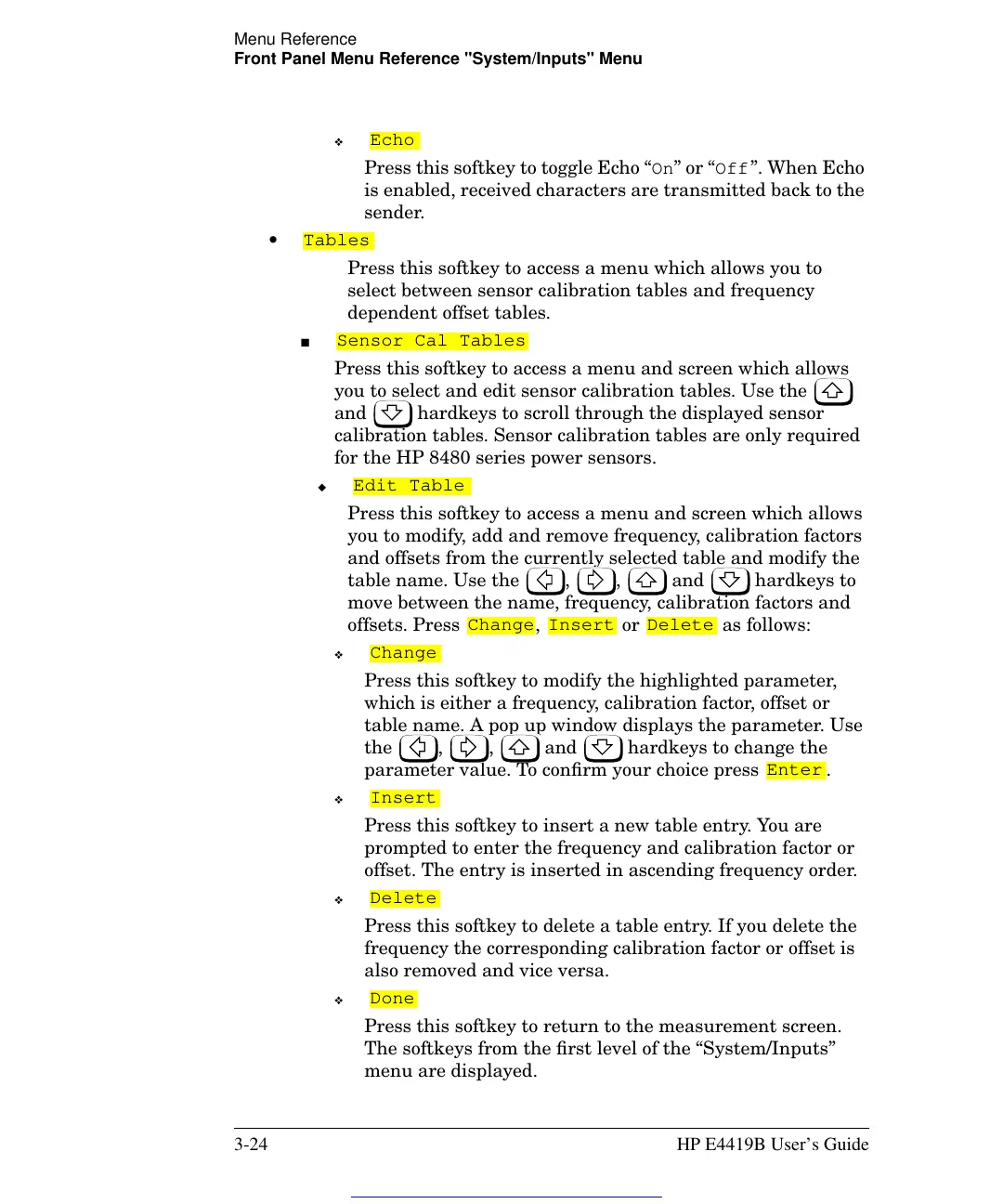

Menu Reference
Front Panel Menu Reference "System/Inputs" Menu
3-24 HP E4419B User’s Guide
❖
Press this softkey to toggle Echo “On” or “Off”. When Echo
is enabled, received characters are transmitted back to the
sender.
•
Press this softkey to access a menu which allows you to
select between sensor calibration tables and frequency
dependent offset tables.
■
Press this softkey to access a menu and screen which allows
you to select and edit sensor calibration tables. Use the
and hardkeys to scroll through the displayed sensor
calibration tables. Sensor calibration tables are only required
for the HP 8480 series power sensors.
◆
Press this softkey to access a menu and screen which allows
you to modify, add and remove frequency, calibration factors
and offsets from the currently selected table and modify the
table name. Use the , , and hardkeys to
move between the name, frequency, calibration factors and
offsets. Press , or as follows:
❖
Press this softkey to modify the highlighted parameter,
which is either a frequency, calibration factor, offset or
table name. A pop up window displays the parameter. Use
the , , and hardkeys to change the
parameter value. To confirm your choice press .
❖
Press this softkey to insert a new table entry. You are
prompted to enter the frequency and calibration factor or
offset. The entry is inserted in ascending frequency order.
❖
Press this softkey to delete a table entry. If you delete the
frequency the corresponding calibration factor or offset is
also removed and vice versa.
❖
Press this softkey to return to the measurement screen.
The softkeys from the first level of the “System/Inputs”
menu are displayed.
Echo
Tables
Sensor Cal Tables
Edit Table
Change Insert Delete
Change
Enter
Insert
Delete
Done
