HP E4419B User Manual

HP4402.book : chapt5_2.fm 16 Fri Feb 12 15:32:45 1999

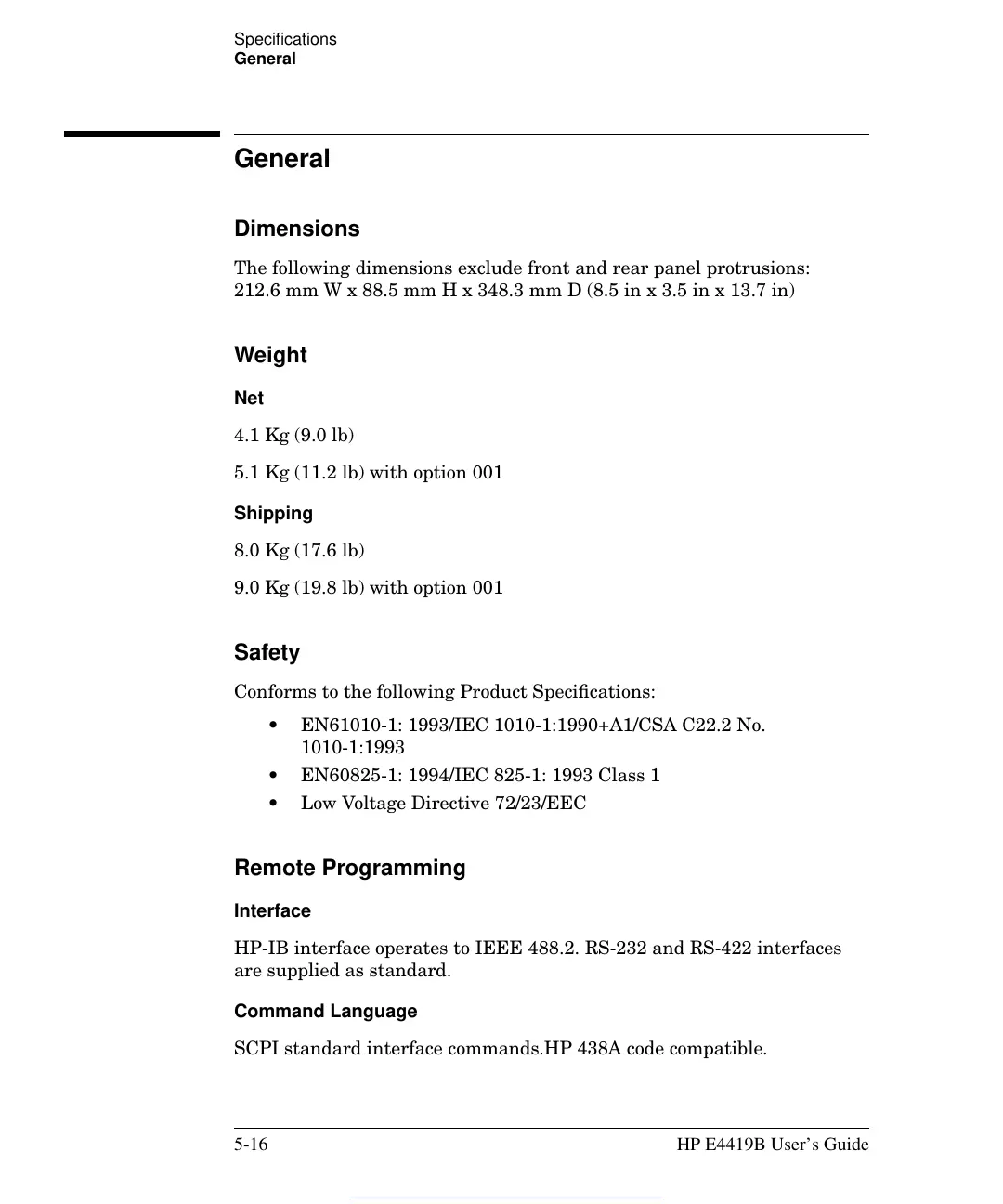

Specifications
General
5-16 HP E4419B User’s Guide
General
Dimensions
The following dimensions exclude front and rear panel protrusions:
212.6 mm W x 88.5 mm H x 348.3 mm D (8.5 in x 3.5 in x 13.7 in)
Weight
Net
4.1 Kg (9.0 lb)
5.1 Kg (11.2 lb) with option 001
Shipping
8.0 Kg (17.6 lb)
9.0 Kg (19.8 lb) with option 001
Safety
Conforms to the following Product Specifications:
• EN61010-1: 1993/IEC 1010-1:1990+A1/CSA C22.2 No.
1010-1:1993
• EN60825-1: 1994/IEC 825-1: 1993 Class 1
• Low Voltage Directive 72/23/EEC
Remote Programming
Interface
HP-IB interface operates to IEEE 488.2. RS-232 and RS-422 interfaces
are supplied as standard.
Command Language
SCPI standard interface commands.HP 438A code compatible.
