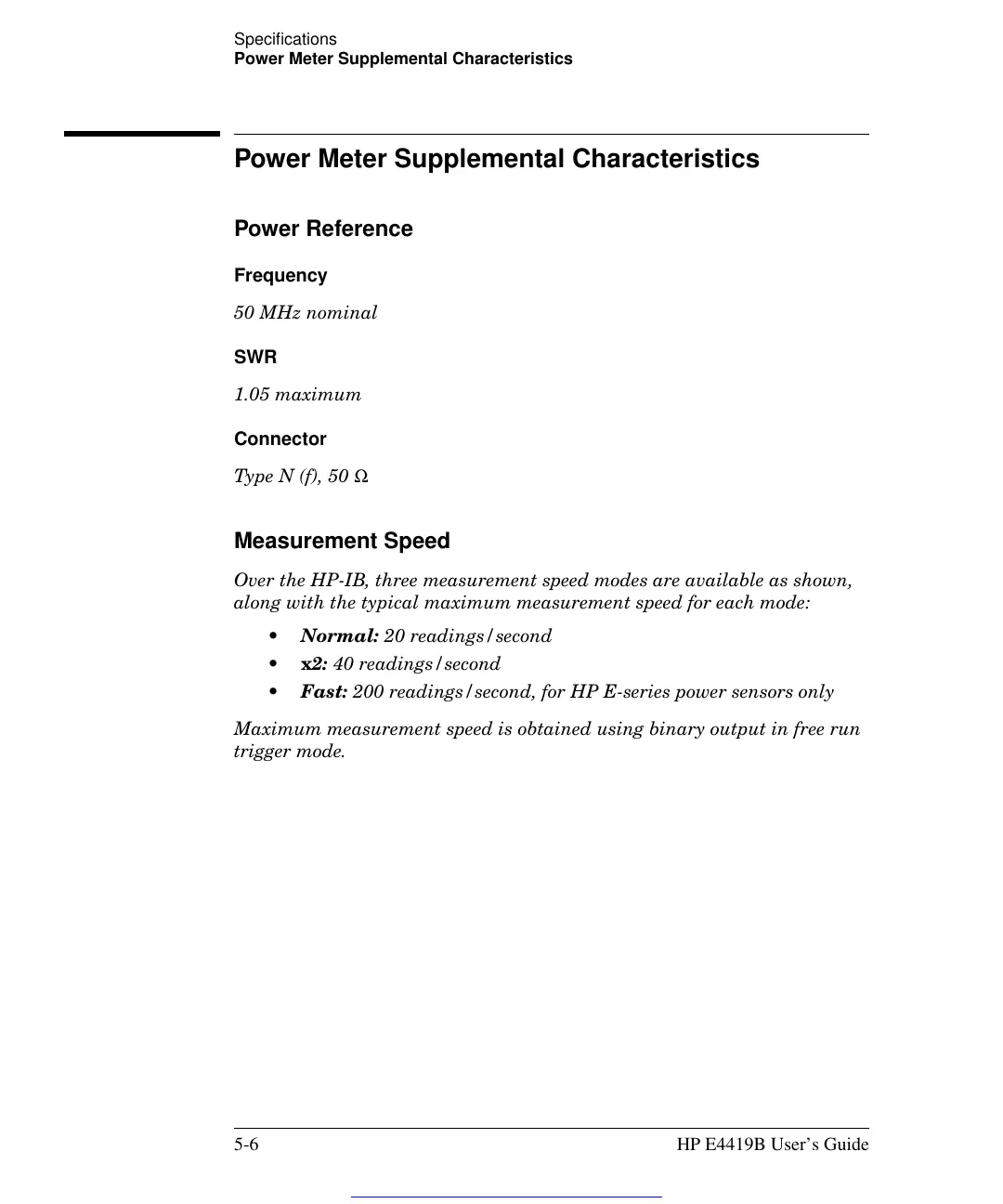

Specifications
Power Meter Supplemental Characteristics
5-6 HP E4419B User’s Guide
Power Meter Supplemental Characteristics
Power Reference
Frequency
50 MHz nominal
SWR
1.05 maximum
Connector
Type N (f), 50 Ω
Measurement Speed
Over the HP-IB, three measurement speed modes are available as shown,
along with the typical maximum measurement speed for each mode:
• Normal: 20 readings/second
• x2: 40 readings/second
• Fast: 200 readings/second, for HP E-series power sensors only
Maximum measurement speed is obtained using binary output in free run
trigger mode.
