Power Meter Operation
Channel Measurements
2-52 HP E4419B User’s Guide

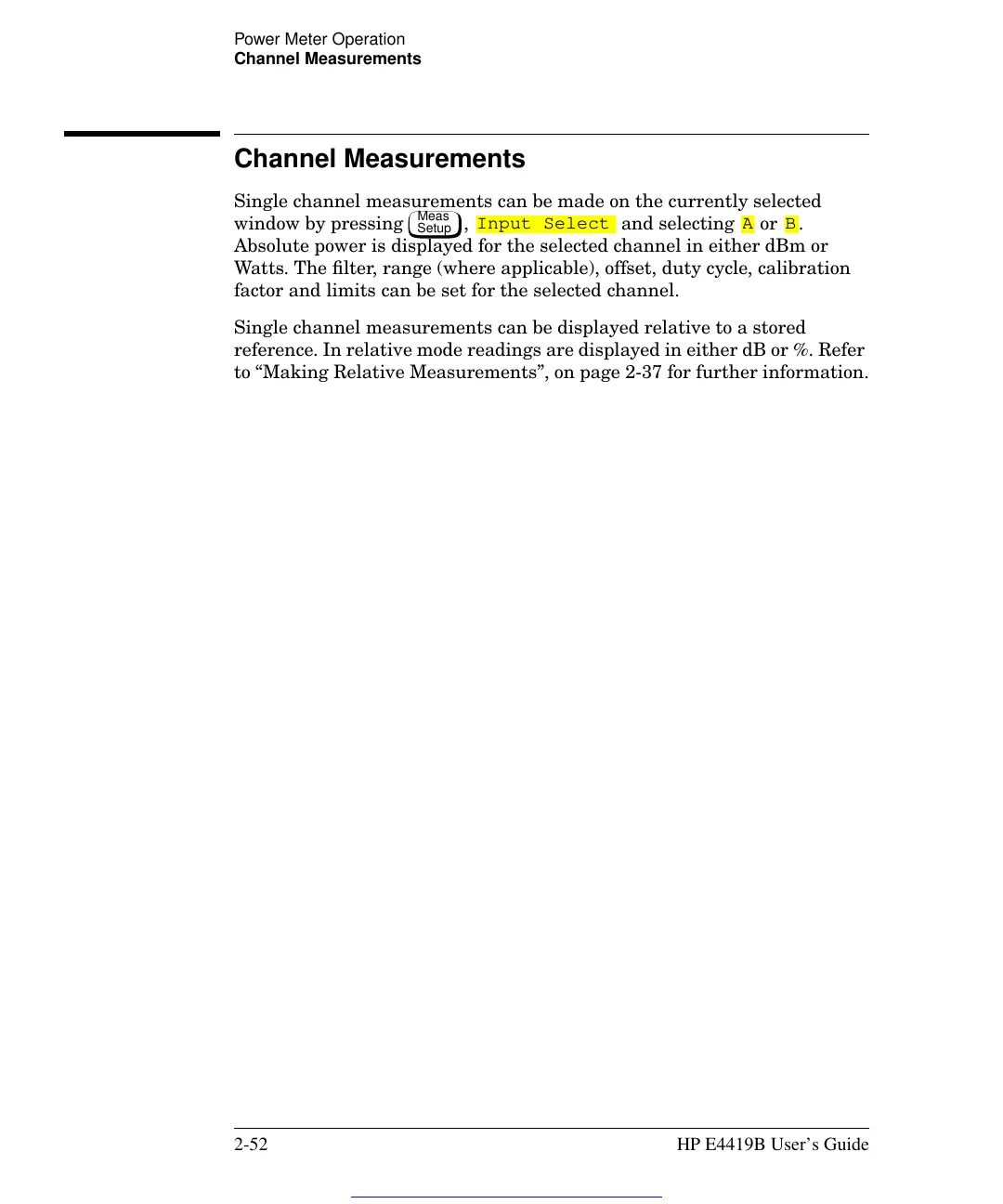

Channel Measurements
Single channel measurements can be made on the currently selected
window by pressing , and selecting or .
Absolute power is displayed for the selected channel in either dBm or
Watts. The filter, range (where applicable), offset, duty cycle, calibration
factor and limits can be set for the selected channel.
Single channel measurements can be displayed relative to a stored
reference. In relative mode readings are displayed in either dB or %. Refer
to “Making Relative Measurements”, on page 2-37 for further information.
Meas
Setup
Input Select A B
