Selecting the Signal Connectors and Cables
The monitor features two DVI-I connectors capable of supporting either analog or digital input.
The video mode supported by the DVI-I connector is determined by the video cable used.
For digital operation, use the DVI-D signal cable provided. Connect the DVI-D signal cable to a
DVI-I connector on the monitor and the other end to the DVI connector on the computer.
For analog operation, use the DVI-I to VGA signal cable provided. Connect the DVI-I to VGA
signal cable to a DVI-I connector on the monitor and the other end to the VGA connector on the
computer.
The monitor will automatically determine which inputs have valid video signals. The inputs can be
selected through the On-Screen Display (OSD) feature by pressing the Input Select button on the
front panel.

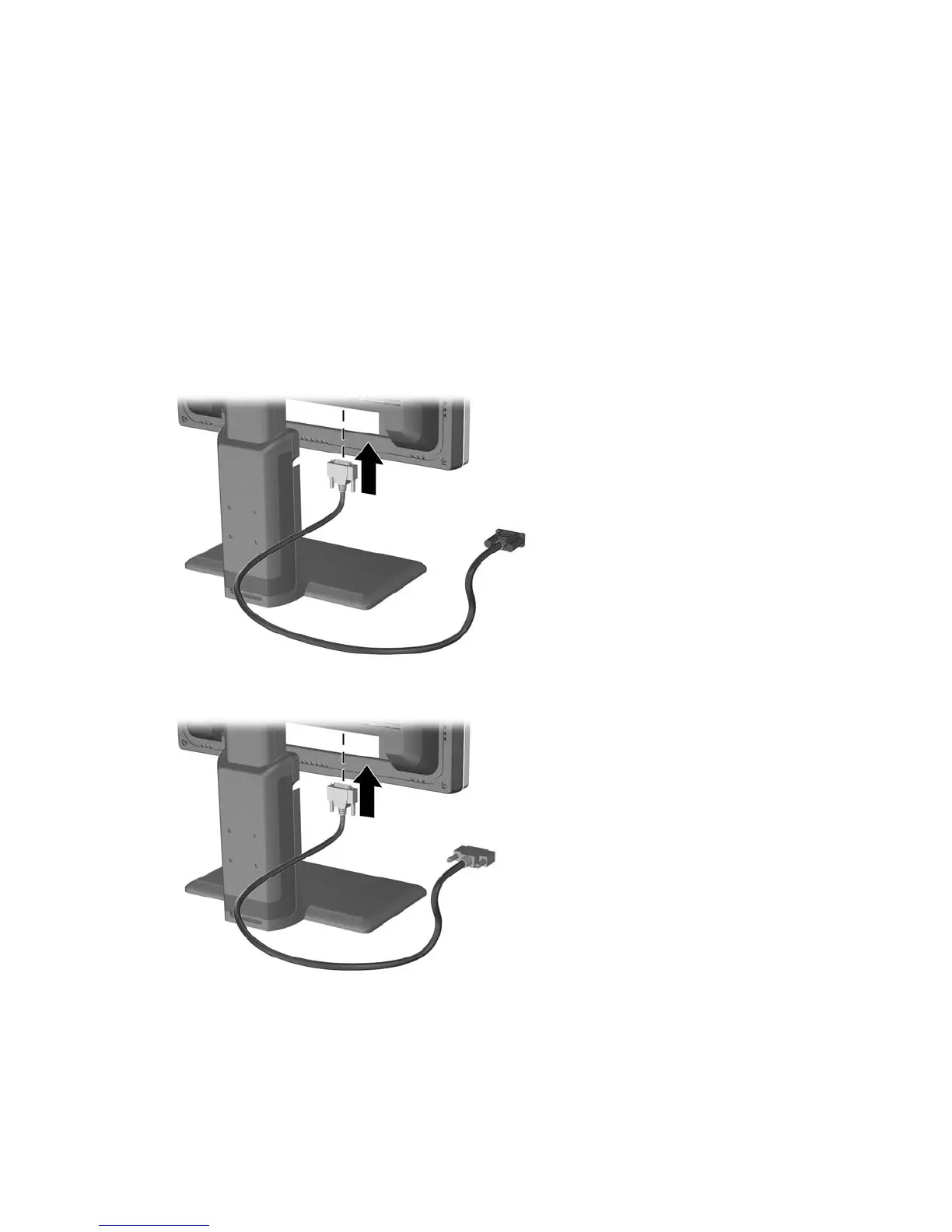

Figure 3-3 Connecting the DVI-I to VGA Signal Cable
Figure 3-4 Connecting the DVI-D Signal Cable
Selecting the Signal Connectors and Cables 7
