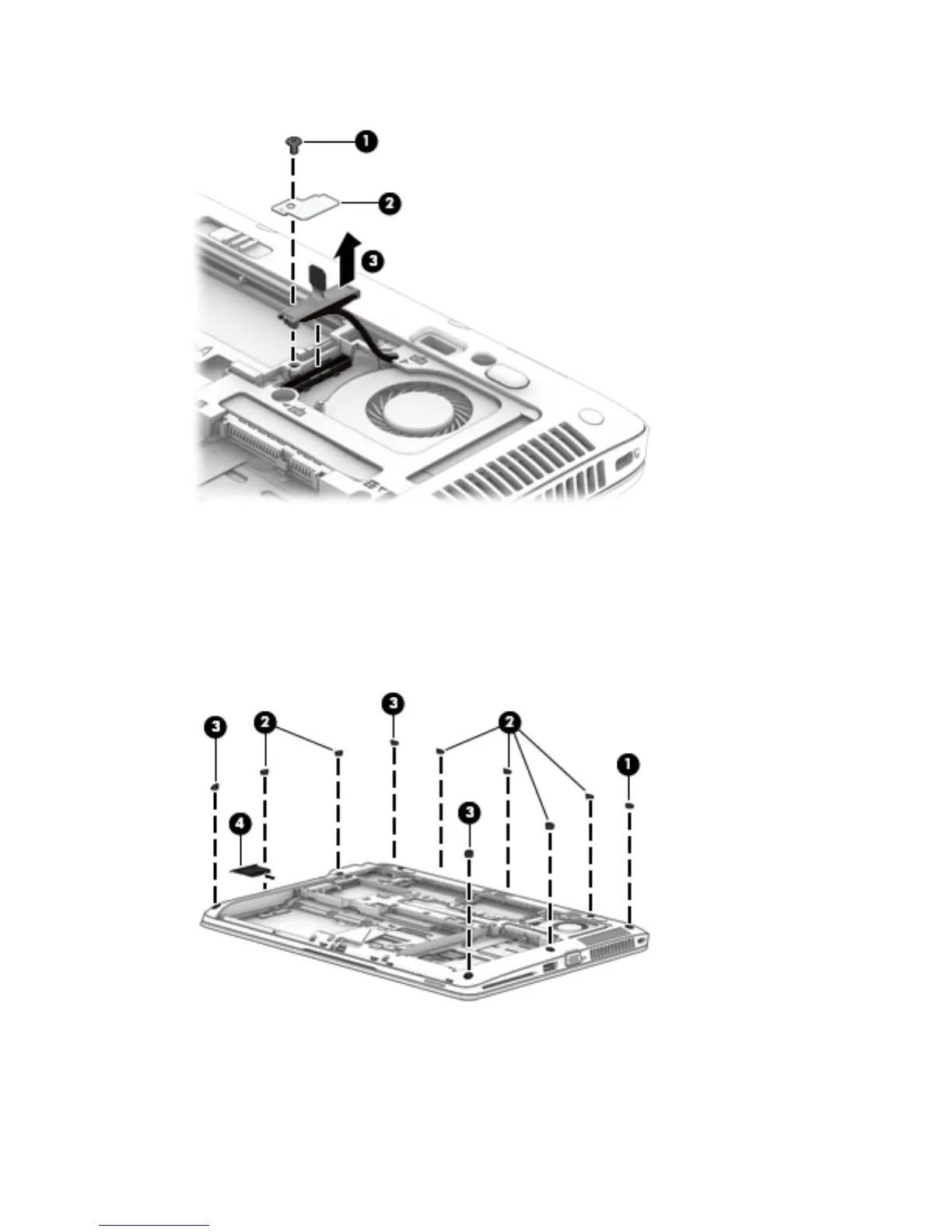

5. Disconnect the display panel cable (3) from the system board.
6. Remove the following rubber screw covers:
(1) This screw cover has a “1” marking on the inside of the cover
(2) These screw covers have a “2” marking on the inside of the cover
(3) These screw covers have a “3” marking on the inside of the cover
7. Remove the card reader bezel (4) from the card reader slot.
58 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
