6. If it is necessary to replace the display panel:

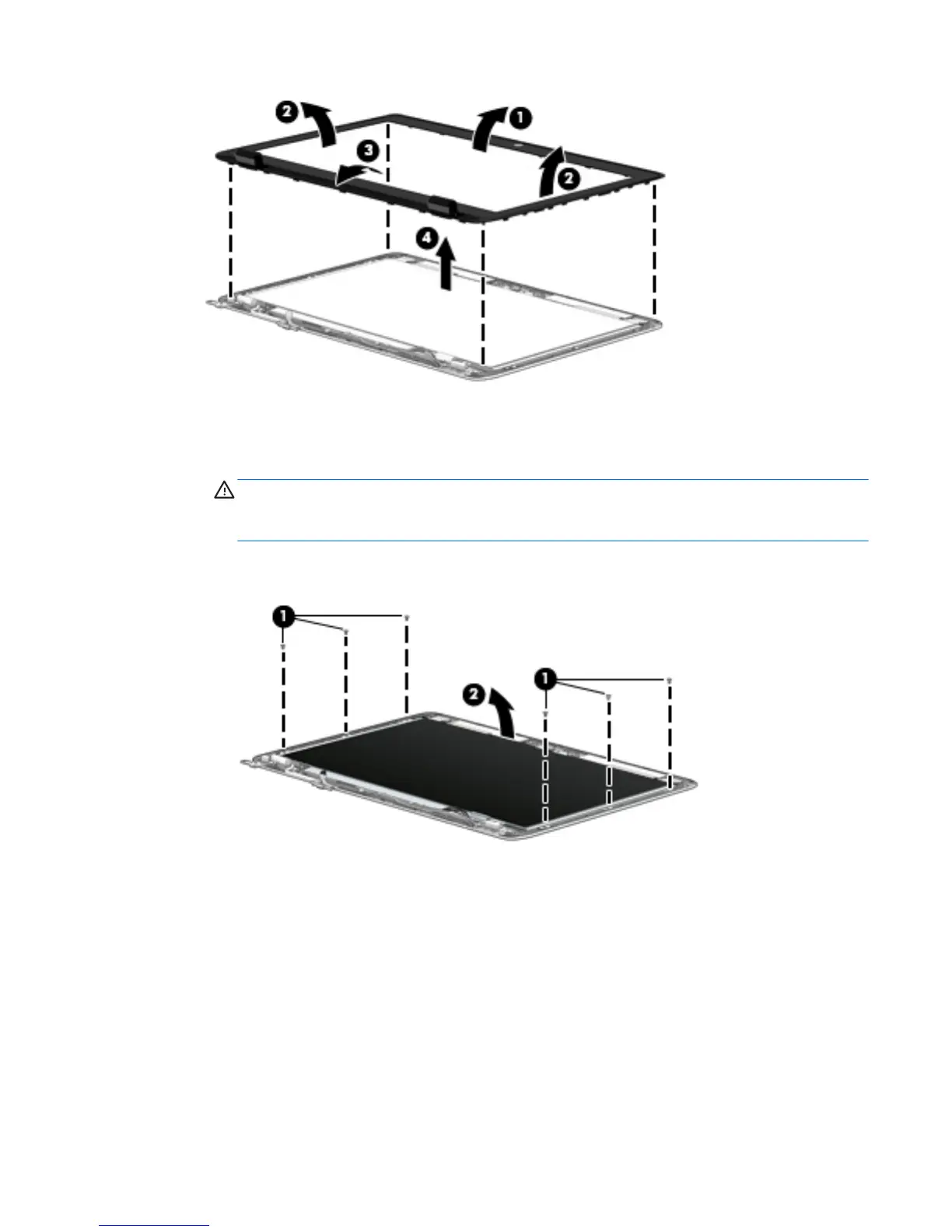

a. Remove the six Phillips PM2.0×3.25 screws (1) that secure the display panel to the
display enclosure.
CAUTION: Before turning the display panel upside down, make sure the work surface is clear of
tools, screws, and any other foreign objects. Failure to follow this caution can result in damage to
the display panel.
b. Lift the top edge of the display panel (2) and swing it up and forward until it rests upside down in
front of the display enclosure.
c. Release the adhesive strip (1) that secures the display panel cable connector to the display panel.
