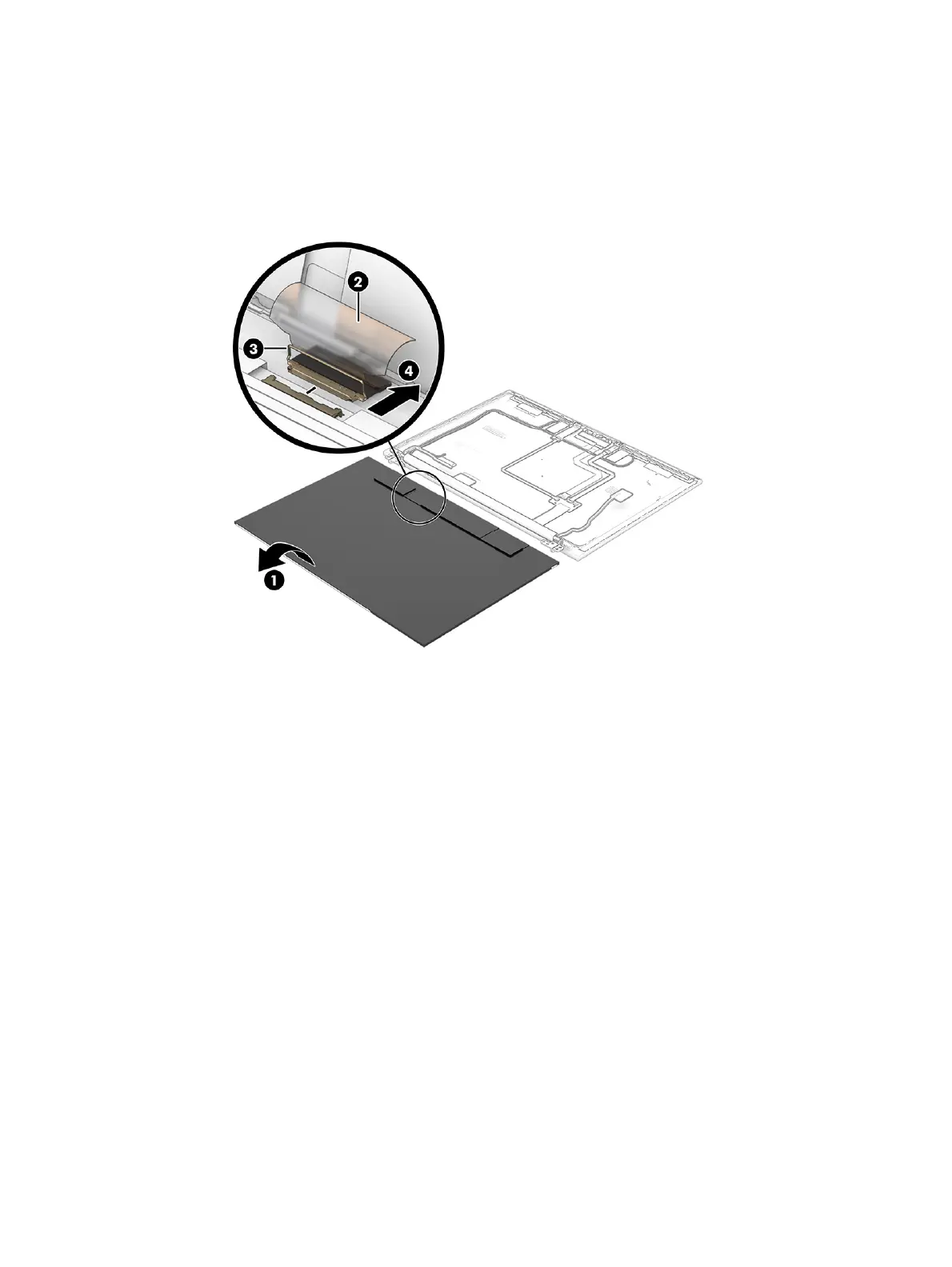

c. Release the adhesive support strip (2) that secures the display panel cable to the back of the
display panel.
d. Release the retention bar (3) that secures the display panel cable to the back of the display
panel.
e. Disconnect the display panel cable (4) from the display panel.
f. Remove the display panel.
The LCD Support Kit is available using spare part number N19298-001.
The display panel is available using the following spare part numbers:
● N95485-001: WUXGA, 300 nits
● N95486-001: WUXGA, touch screen, 300 nits
● N95488-001: WUXGA, 400 nits
● N95499-001: WQXGA, 500 nits
● N95487-001: WUXGA, privacy, 1000 nits
4. To remove the hinge cover:
a. Remove the Phillips M1.3 × 2.5 screw (1) that secures the hinge cover to the display back cover.
b. Slide the hinge cover (2) to the right as far as it will go.
c. Swing the top edge of the hinge cover (3) up and forward, and then remove it (4) from the
display back cover.
The hinge cover is available in the Hinge Kit as spare part number P00213-001 for models
without WWAN and N94625-001 for models with WWAN.
Display assembly
65
