Illustrated parts catalog
Maintenance and Service Guide 3–11
Plastics kit
Ä
CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the
plastic parts. Apply pressure only at the points designated in the maintenance instructions.

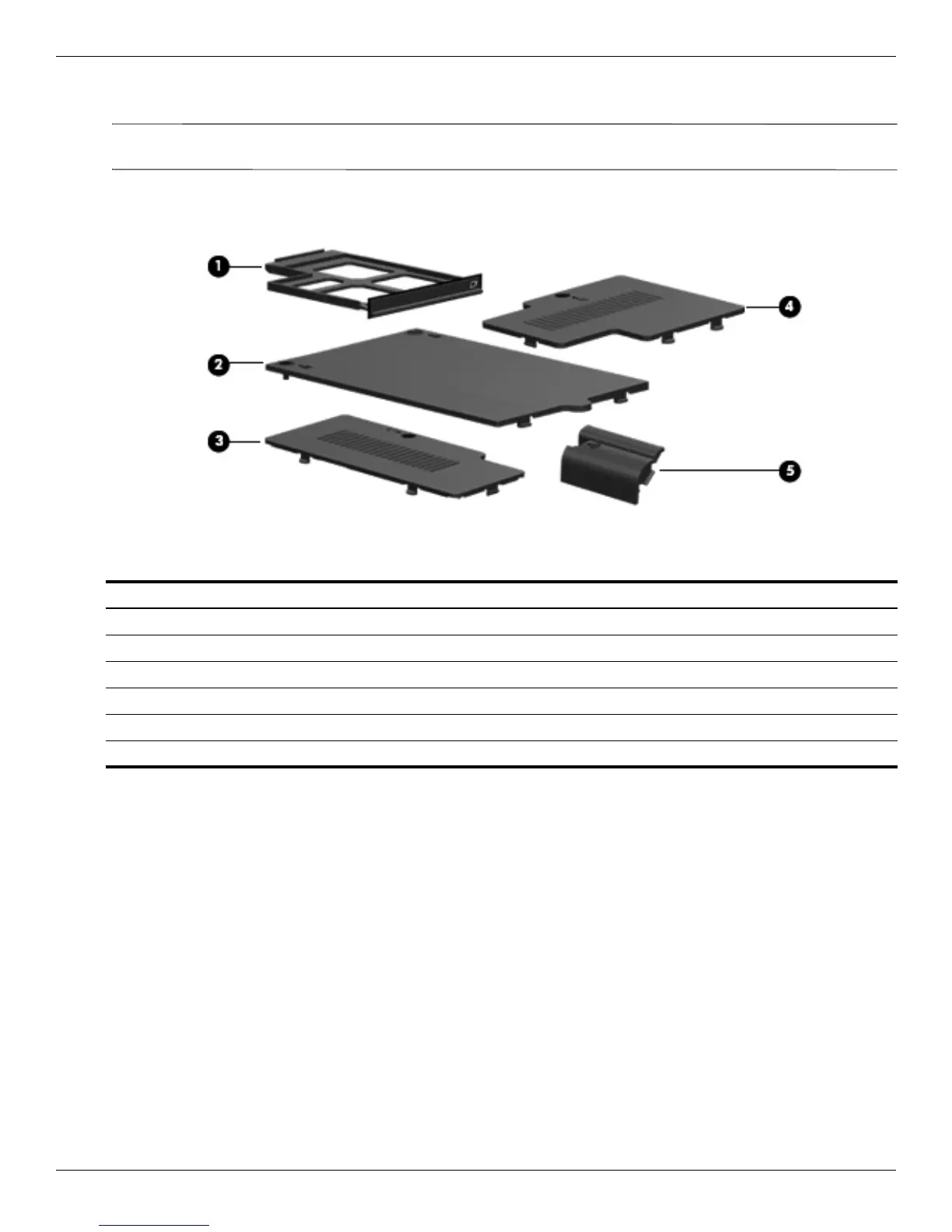

Item Description Spare part number
Plastics kit: 594091-001
(1) ExpressCard slot bezel
(2) Hard drive bay cover (includes one captive screw, secured by a C-clip)
(3) Wireless module compartment cover (includes one captive screw)
(4) Expansion memory compartment cover
(5) Bluetooth module compartment cover
