4–30 Maintenance and Service Guide
Removal and replacement procedures
Ä
CAUTION: Support the display assembly when removing the following screws. Failure to support the display
assembly can result in damage to the display assembly and other computer components.

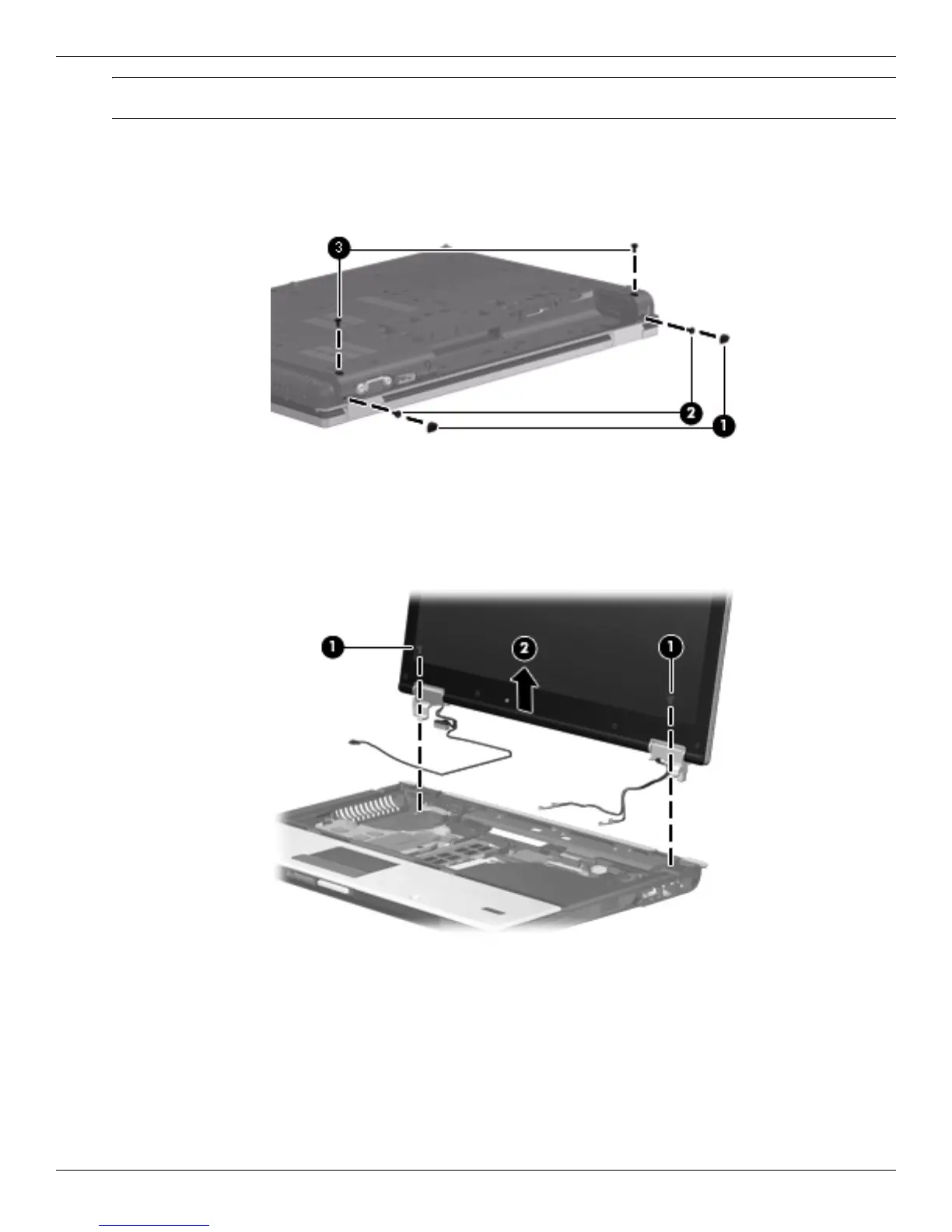

7. Remove the two rubber screw covers 1 and two Torx T8M2.5×6.0 screws 2 that secure the display assembly
to the back of the computer.
8. Remove the two Torx T8M2.5×6.0 screws 3 that secure the display assembly to the bottom of the computer.
9. Turn the computer right-side up and open the display.
10. Remove the two Torx T8M2.5×6.0 screws 1 that secure the display assembly hinges to the base enclosure.
11. Lift the display assembly 2 straight up and remove it.
