Removal and replacement procedures
Maintenance and Service Guide 4–41

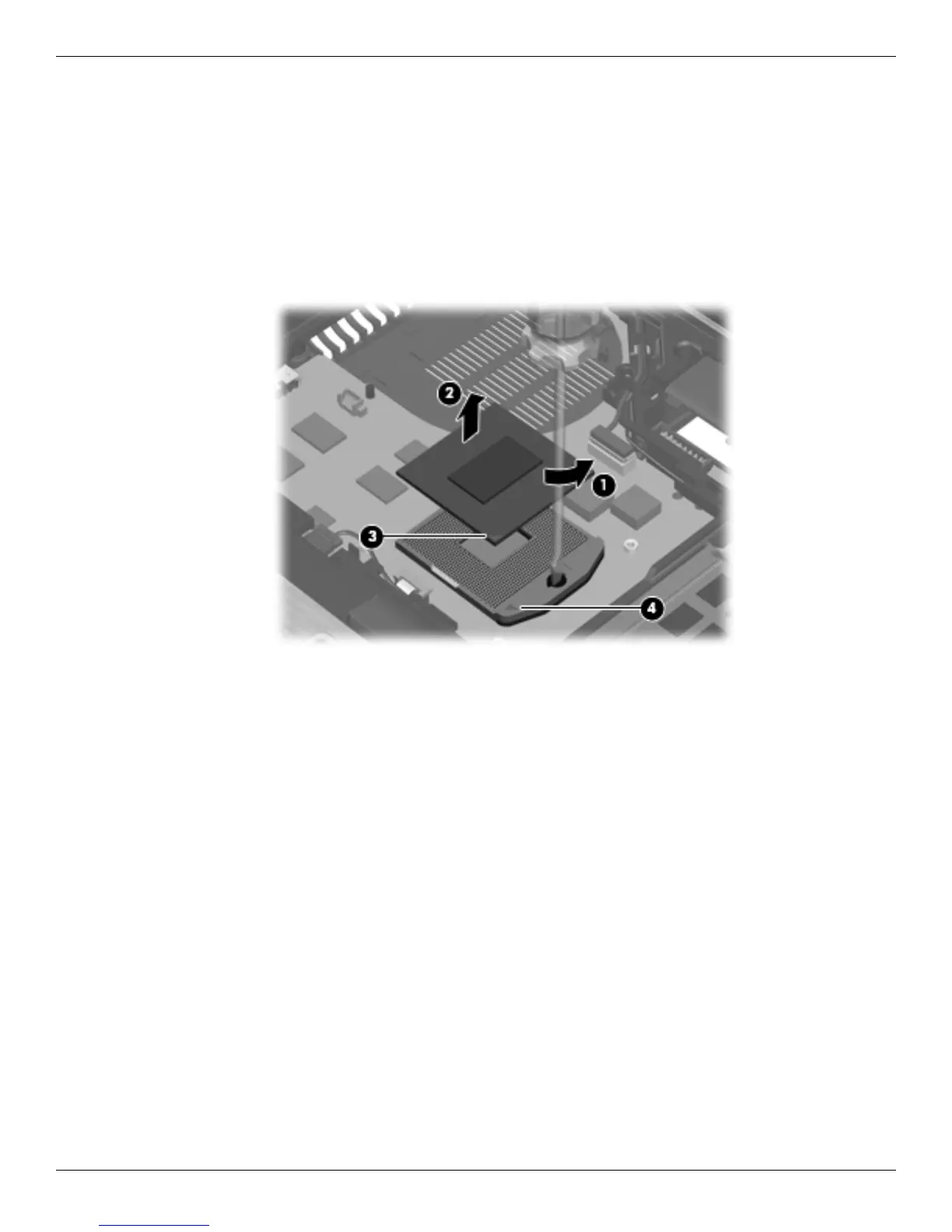

Remove the processor:
1. Use a flat-bladed screwdriver to turn the processor locking screw 1 one-half turn counterclockwise, until you
hear a click.
✎
Unlocking and locking directions are embossed on the processor socket.
2. Lift the processor 2 straight up and remove it.
✎
When you install the processor, align the gold triangle 3 etched on top of the processor with the triangle embossed
on the processor socket
4.
Clean and replace any thermal material, and then reverse this procedure to install the processor.
