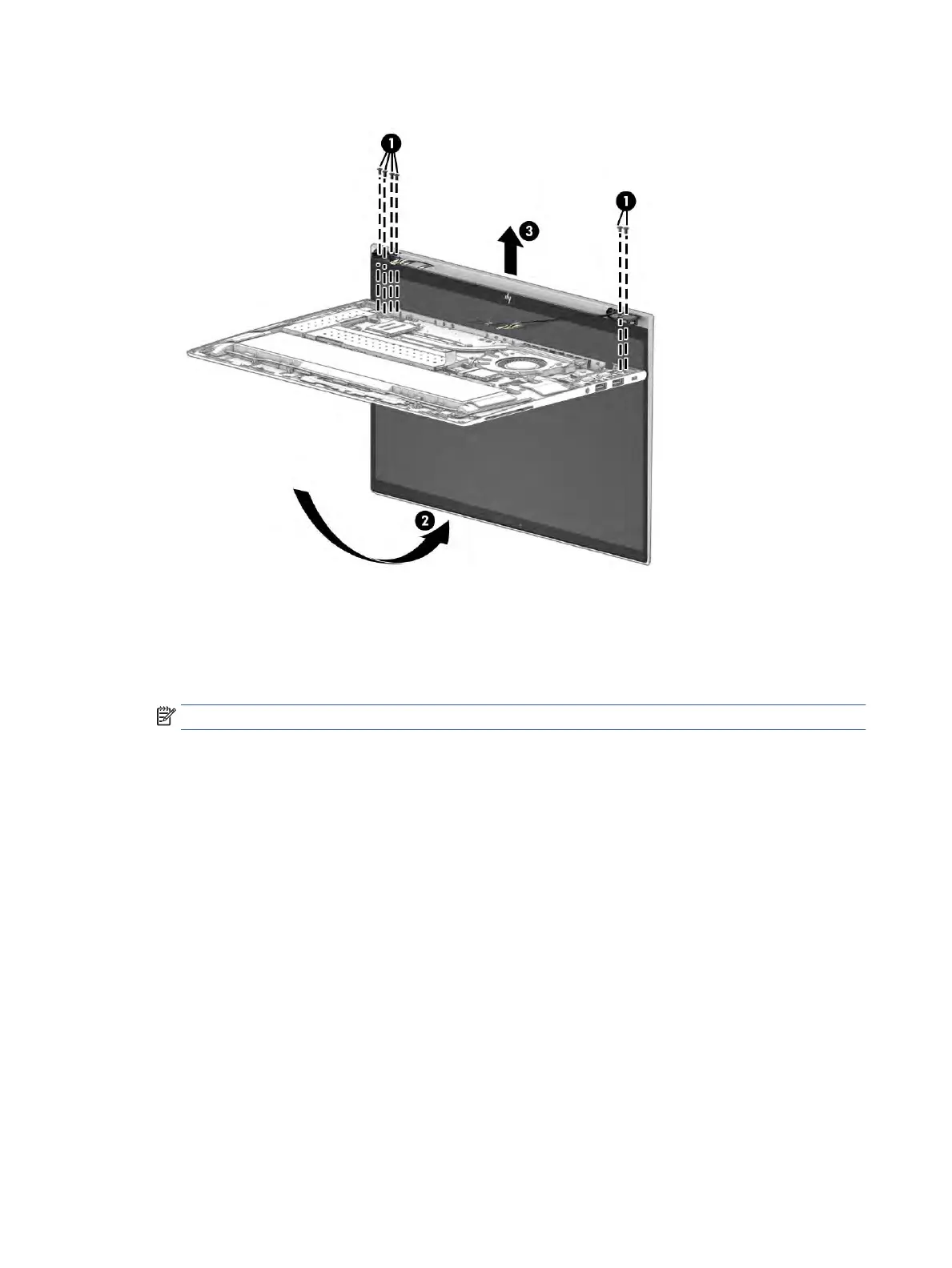

6. Separate the display assembly from the computer (3).
7. If you need to replace display assembly subcomponents:
a. Flex the bottom (1), the left and right sides (2), and then the top of the bezel (3) to release it.
b. Remove the bezel from the display (4).
Bezels are available as the following spare part numbers:
NOTE: When replacing the bezel, be sure that the replacement bezel matches the original bezel.
● M07163-001: IR camera and ambient light sensor
● M07164-001: IR camera
● M07165-001: RGB camera and ambient light sensor
● M07166-001: RGB camera
● M07100-001: Microphone module only (no camera module)
60 Chapter 6 Removal and replacement procedures for authorized service provider parts
