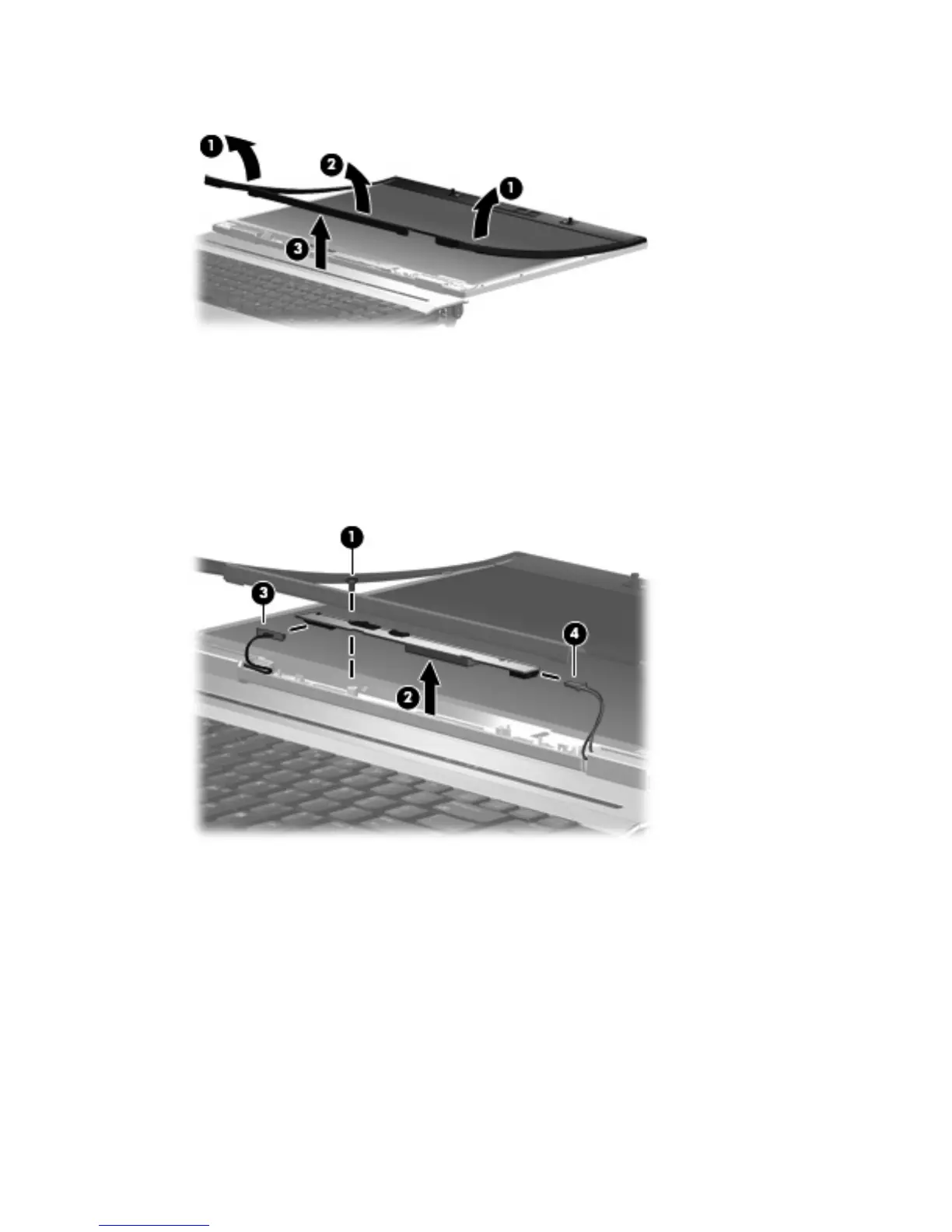

6. Release the display bezel bottom edge (3) from the display assembly.
7. Disconnect the ZIF connector.
8. Remove the two Phillips PM2.5×5.0 screws (1) that secure the display inverter to the display
enclosure.
9. Release the inverter (2) from the display enclosure as far as the display panel cable and backlight
cable allow.
10. Disconnect the backlight cable (3) and the display panel cable (4) from the display inverter.
11. Remove the display inverter.
Reverse this procedure to install the display inverter.
