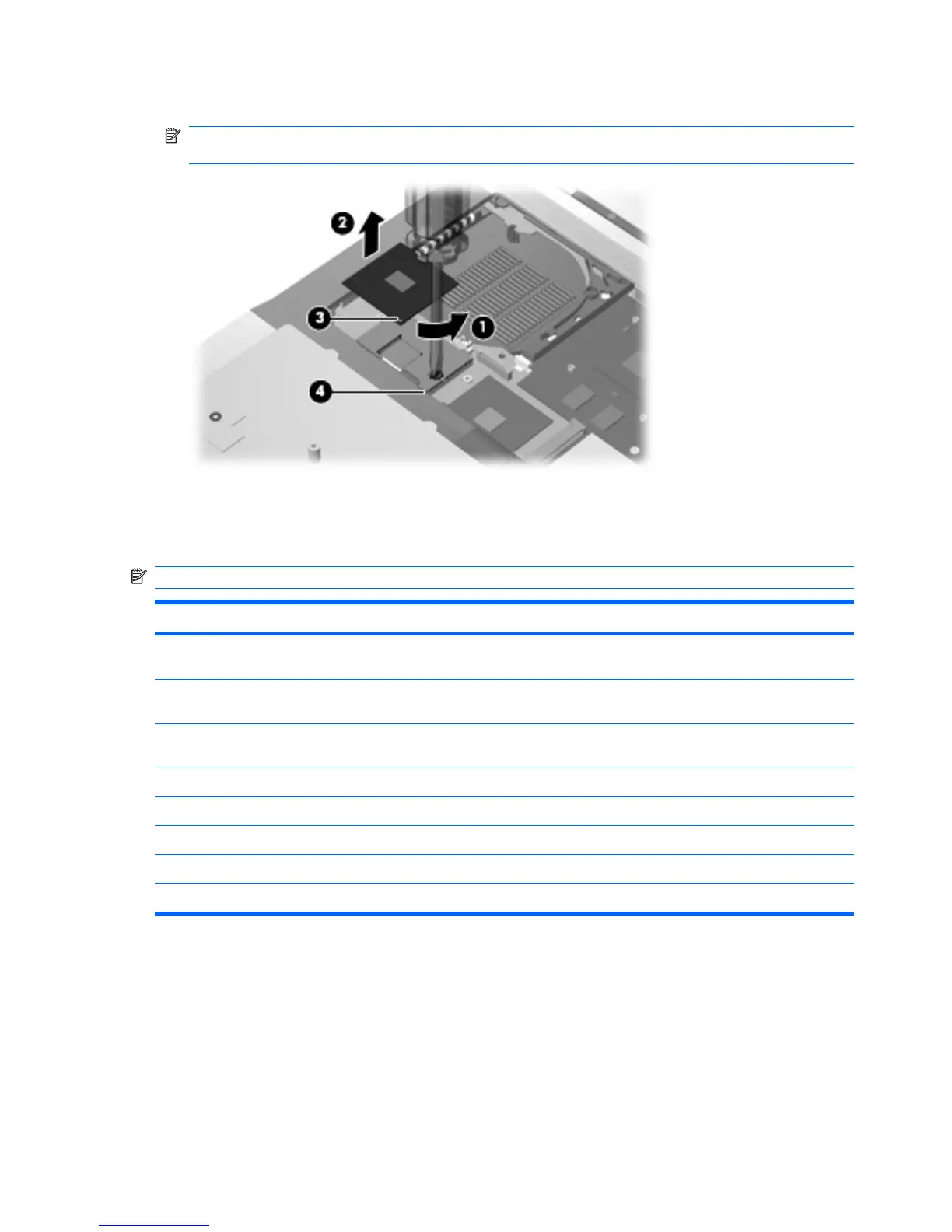

2. Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle (4) embossed on
the processor slot when you install the processor.
Reverse this procedure to install the processor.
Graphics card
NOTE: All graphics card spare part kits include replacement thermal material.
Description Spare part number
ATI M86M ATI Mobility Radeon HD 3650 graphics card with 256 MB of graphics subsystem memory
(supports Hypermemory)
495081-001
ATI M86M ATI Mobility FireGL V700 graphics card with 256 MB of graphics subsystem memory
(supports Hypermemory)
502337-001
nVidia NB9P-GLM2 graphics card with 512 MB of graphics subsystem memory (supports Quadro
FX 770M)
502338-001
Thermal Material Kits
For use with the ATI Quad Core processor
495074-001
For use with the nVidia Quad Core processor 501116-001
For use with the ATI Dual Core processor 501117-001
For use with the nVidia Quad Core processor 495075–001
Before removing the graphics card, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
64 Chapter 4 Removal and replacement procedures
