4. Remove the battery (see Battery on page 45).
5. Remove the following components:
a. Keyboard (see
Keyboard on page 56)
b. Fan (see
Fan on page 60)
c. Heat sink (see
Heat sink on page 61)
Remove the graphics card:

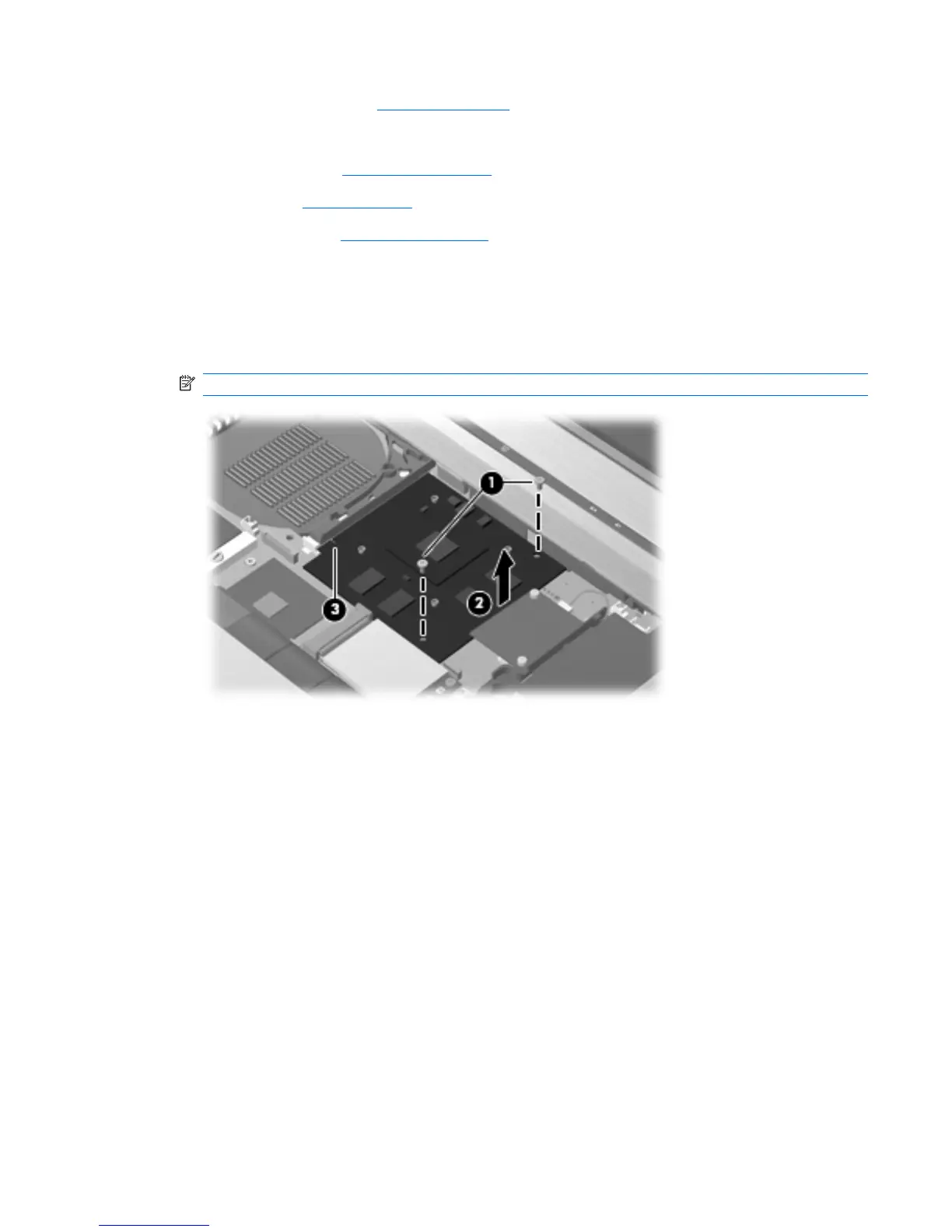

1. Remove the two Phillips PM2.0×5.0 screws (1) that secure the graphics card to the computer. (The
edge of the board opposite the graphics card slot rises away from the computer.)
2. Remove the graphics card (2) by sliding it away from the graphics card slot at an angle.
NOTE: The graphics card is designed with a notch (3) to prevent incorrect installation.
Reverse this procedure to install the graphics card.
Component replacement procedures 65
