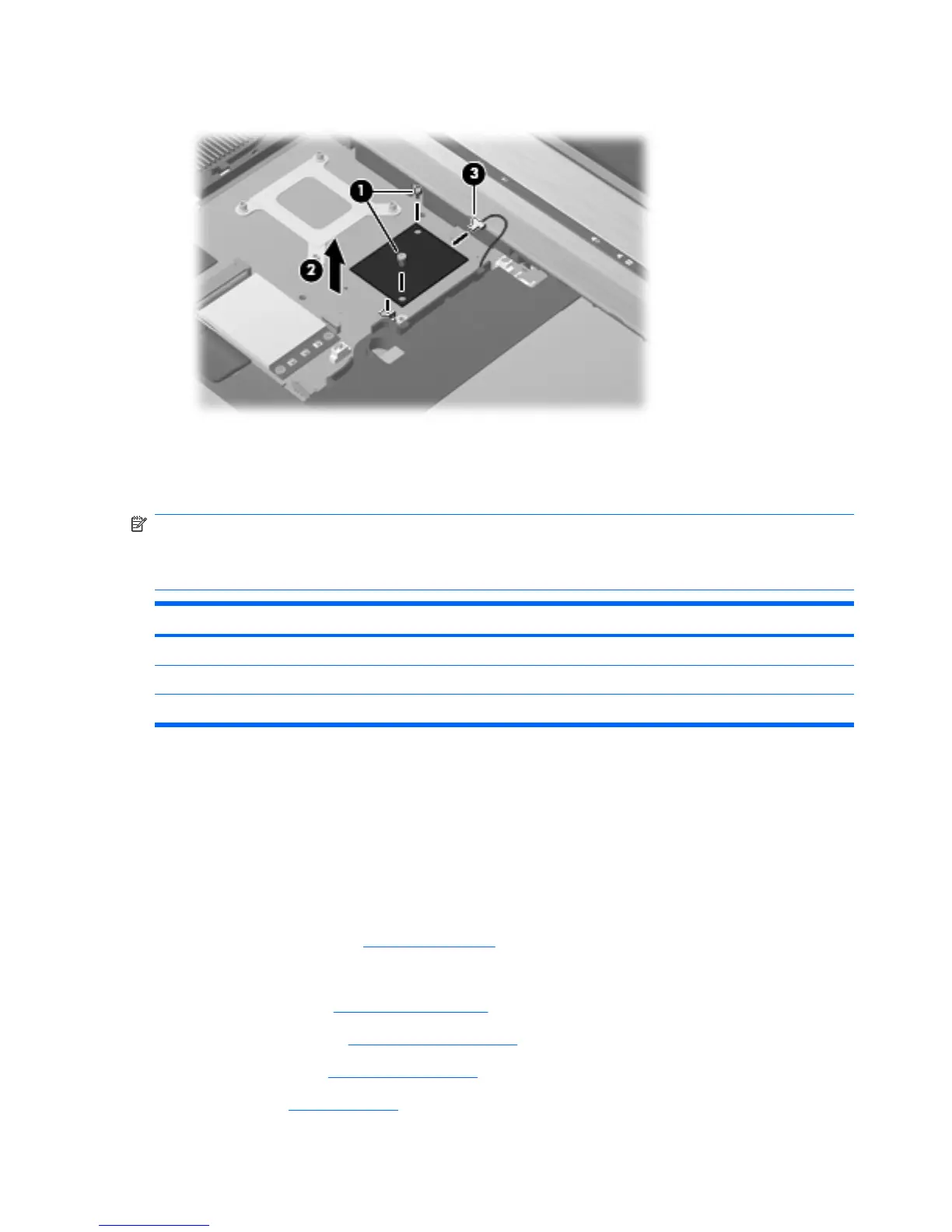

3. Disconnect the modem module cable (3) from the system board.
Reverse this procedure to install the modem module.
System board and system board frame
NOTE: All system board spare part kits include replacement thermal material. The Thermal Material
Kit is also available using spare part numbers 413706-001 (for use in all countries or regions except
Japan and Asia countries and regions) and 445853-001 (for use only in Japan and Asia Pacific countries
and regions).
Description Spare part number
For use with HP EliteBook 8530w computer models with Quad Core 500906-001
For use with HP EliteBook 8530w computer models with Core Duo 500905-001
For use with HP EliteBook 8530p computer models 500907-001
Before removing the system board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 45).
5. Remove the following components:
a. Hard drive (see
Hard drive on page 49)
b. Optical drive (see
Optical drive on page 52)
c. Keyboard (see
Keyboard on page 56)
d. Fan (see
Fan on page 60)
84 Chapter 4 Removal and replacement procedures
