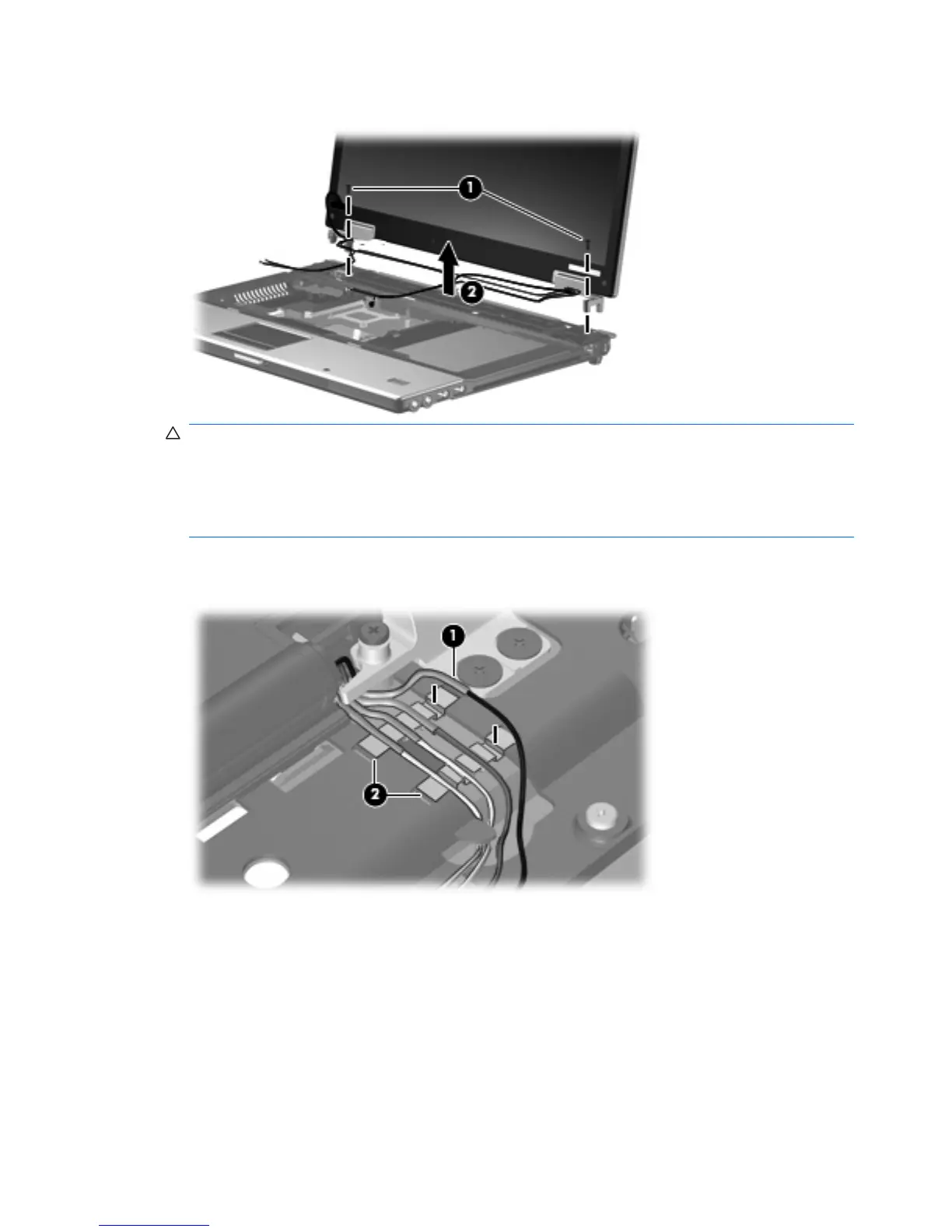

7. Lift the display assembly (2) straight up and remove it.
CAUTION: When installing the display assembly, be sure that the 4 wireless antenna cables
routed out of the display right hinge are routed and arranged properly. Each antenna cable has an
exposed section of cable and a metallic grounding sleeve (1). The grounding sleeve must
completely cover the exposed section of cable. Each cable must be secured inside a space in the
copper grounding clip (2). Left to right, the cables must be installed in a white, yellow, red, black
sequence.
Failure to follow these routing instructions can result in degradation of the computer's WLAN and
WWAN performance.
