h. Display assembly (see Display assembly on page 73)
i. Top cover (see
Top cover on page 79)
j. Speaker assembly (see
Speaker assembly on page 81)
k. Modem module (see
Modem module on page 83)
l. System board (see
System board and system board frame on page 84)

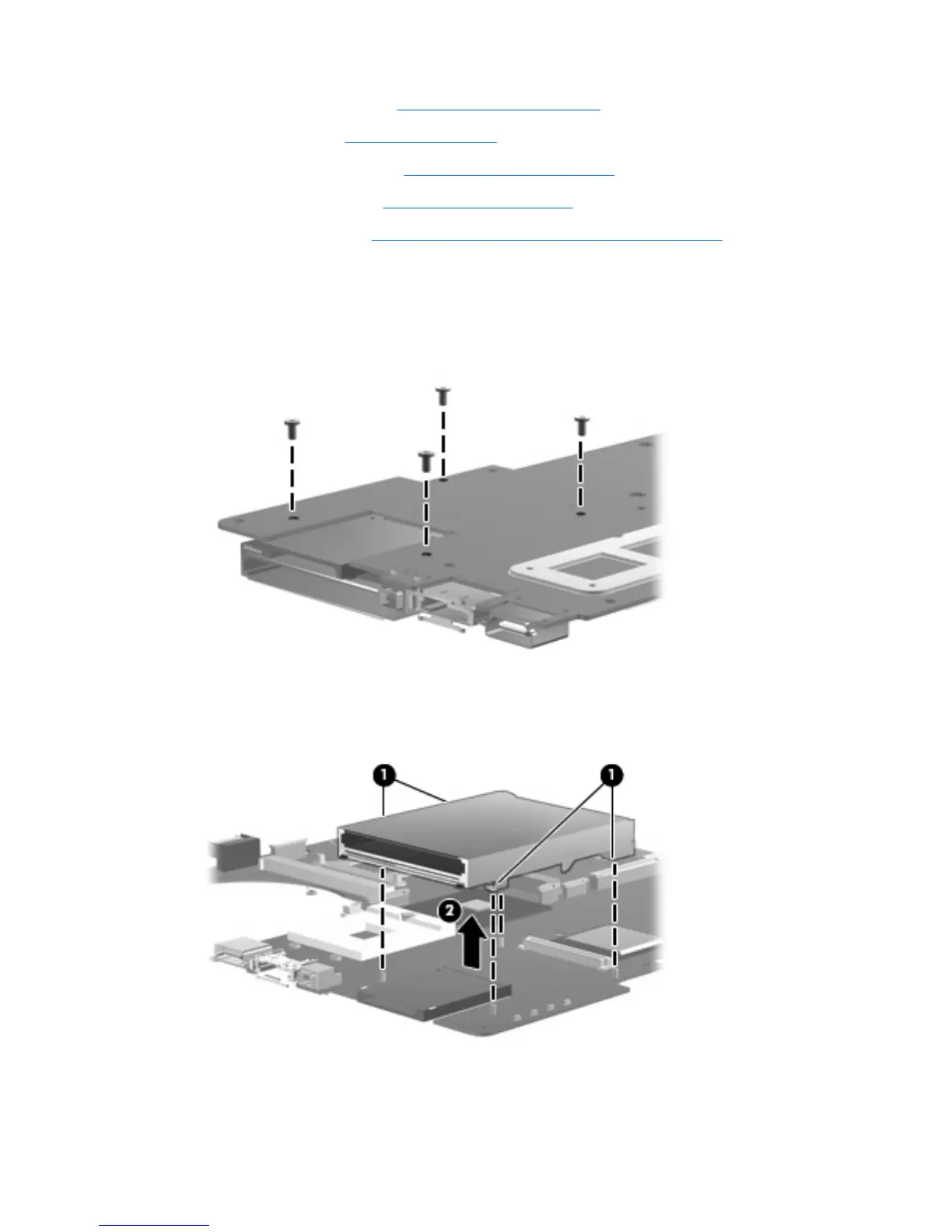

Remove the ExpressCard assembly:
1. Turn the system board upside down, with the front toward you.
2. Remove the four Phillips PM2.0×5.0 screws that secure the ExpressCard assembly to the system
board.
3. Detach the slots on the ExpressCard assembly from the tabs on the ExpressCard connector (1).
4. Remove the ExpressCard assembly (2).
Reverse this procedure to install the ExpressCard assembly.
