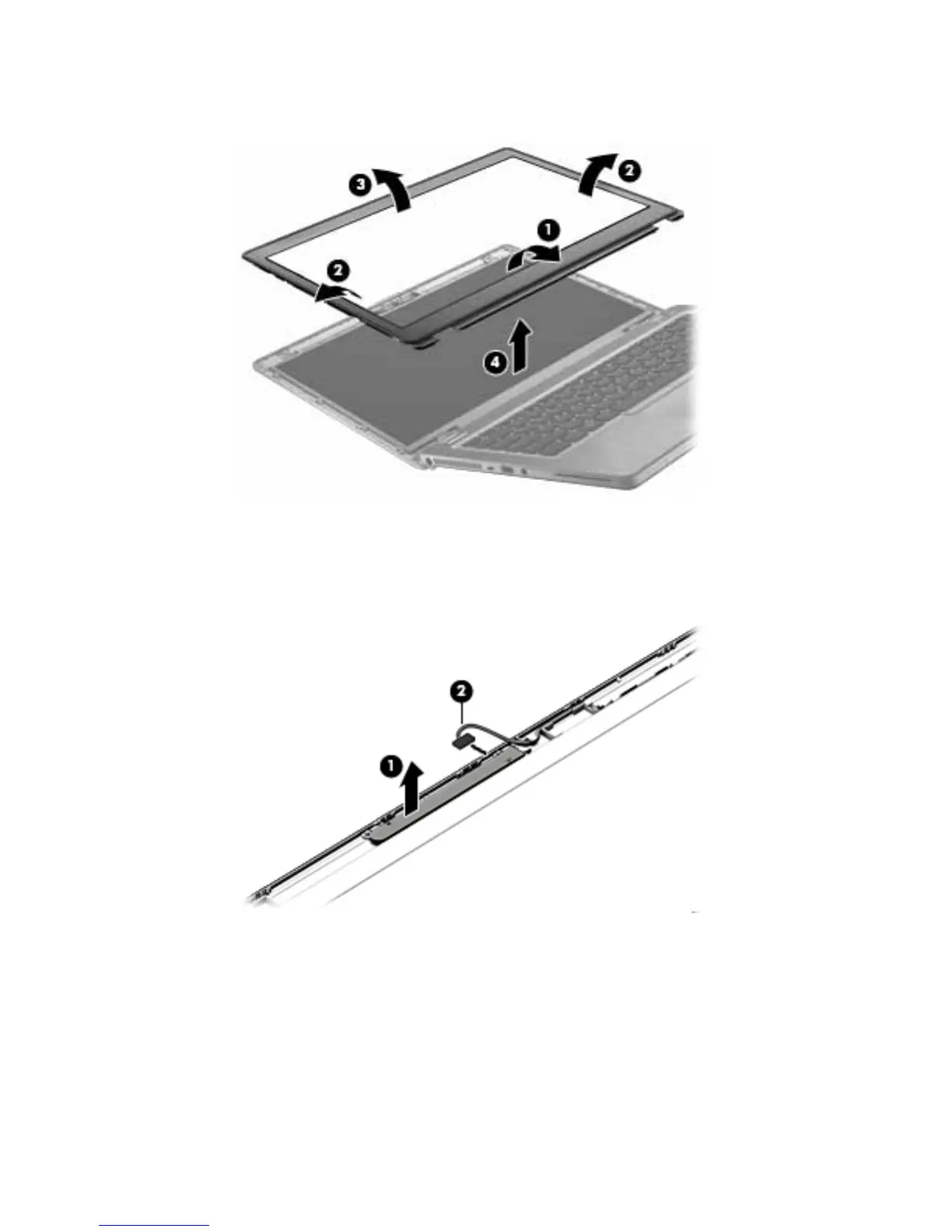

b. Remove the display bezel (4). The display bezel is available using spare part number 769705-001
on models with a webcam and 769706-001 on models without a webcam.
4. If it is necessary to replace the webcam/microphone module:
a. Detach the webcam/microphone module (1) from the display enclosure. (The webcam/microphone
module is attached to the display enclosure with double-sided tape.)
b. Disconnect the cable (2) from the webcam/microphone module.
c. Remove webcam/microphone module. The webcam module is available using spare part number
769710-001. The microphone module is available using spare part number 702873-001.
5. If it is necessary to replace the display panel:
a. Remove the four Phillips PM2.0×3.0 screws that secure the display panel to the display enclosure.
●
769721-001 — 35.6-cm (14.0-in), LED, HD, AntiGlare display panel
●
769722-001 — 35.6-cm (14.0-in), LED, HD+, AntiGlare display panel
Component replacement procedures 51
