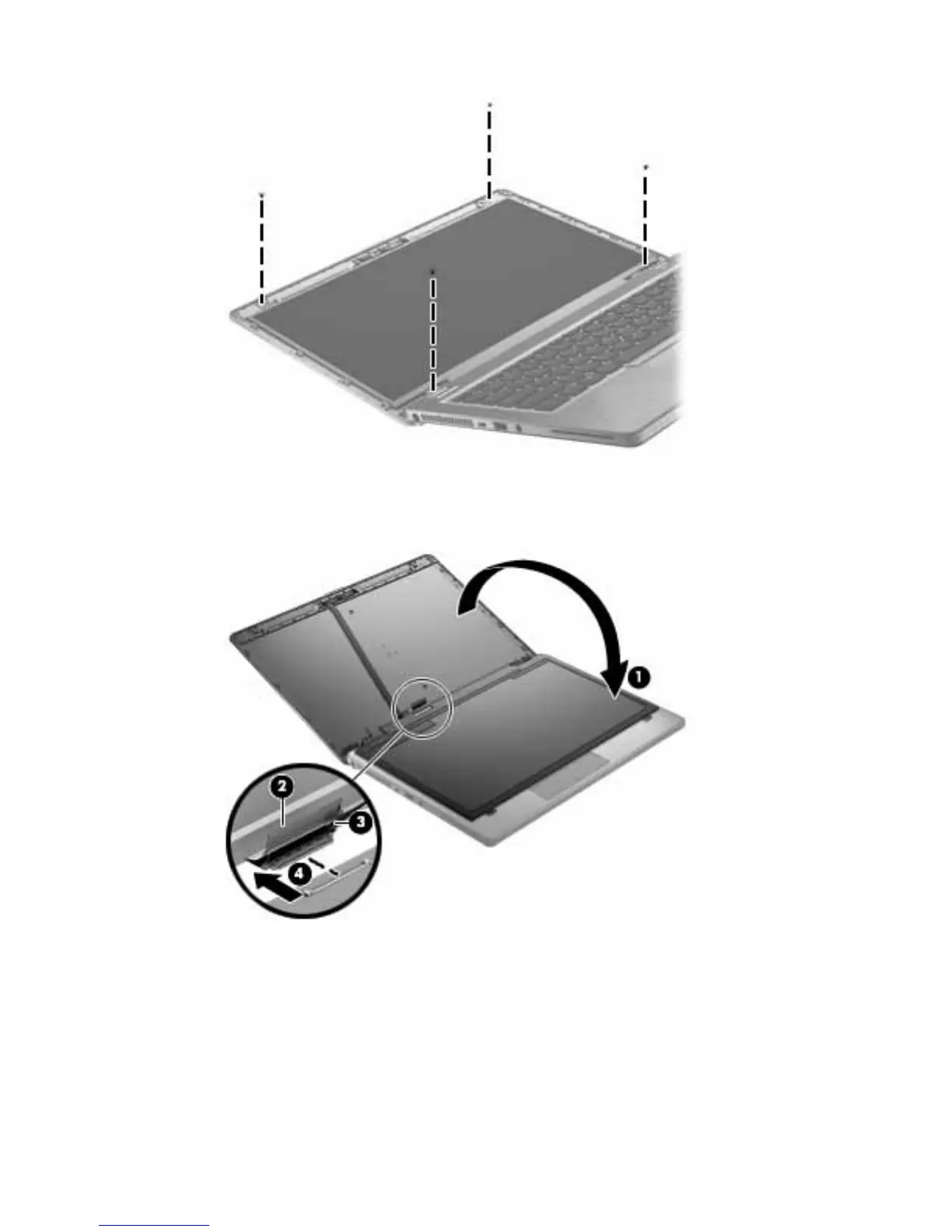

b. Rotate the top of the display panel downward (1).
c. Lift the tape that secure the display cable connector on the panel (2), and then disconnect the
cable (3) from the connector (4).
Reverse this procedure to reassemble and install the display assembly components.
52 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
