10. If it is necessary to replace the WWAN antenna cables and transceivers:
WLAN and WWAN antennas are available in the Antenna Kit, spare part number 769704-001.

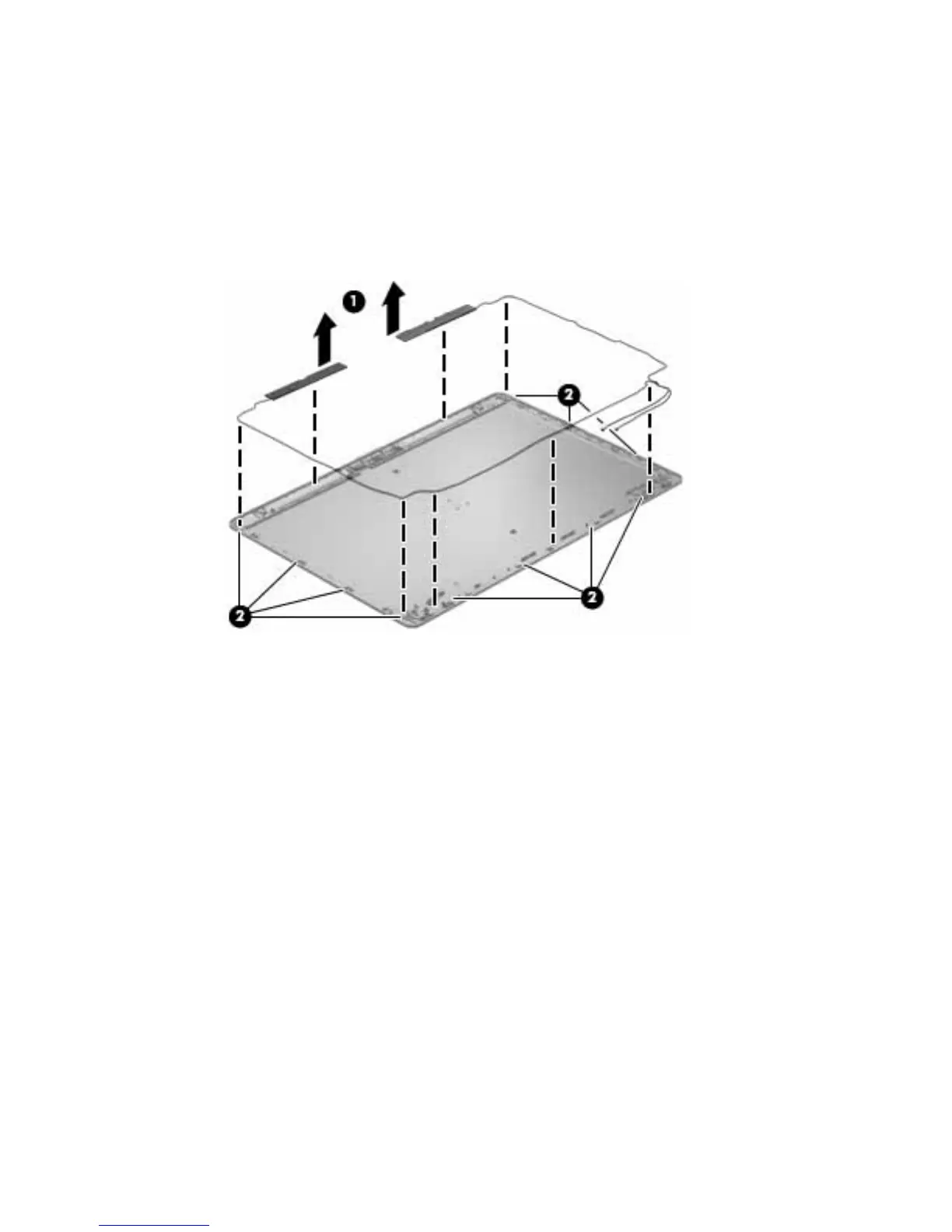

a. Release the WWAN antenna transceivers (1) from the clips built into the display enclosure. (The
WWAN antenna transceivers are attached to the display enclosure with double-sided tape.)
b. Detach the WWAN antenna cables from the routing channels (2) built into the display enclosure.
c. Remove the WWAN antenna cables and transceivers. The WWAN antenna cables and transceivers
are included in the Antenna Kit, spare part number 769704-001.
Reverse this procedure to reassemble and install the display assembly.
72 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
