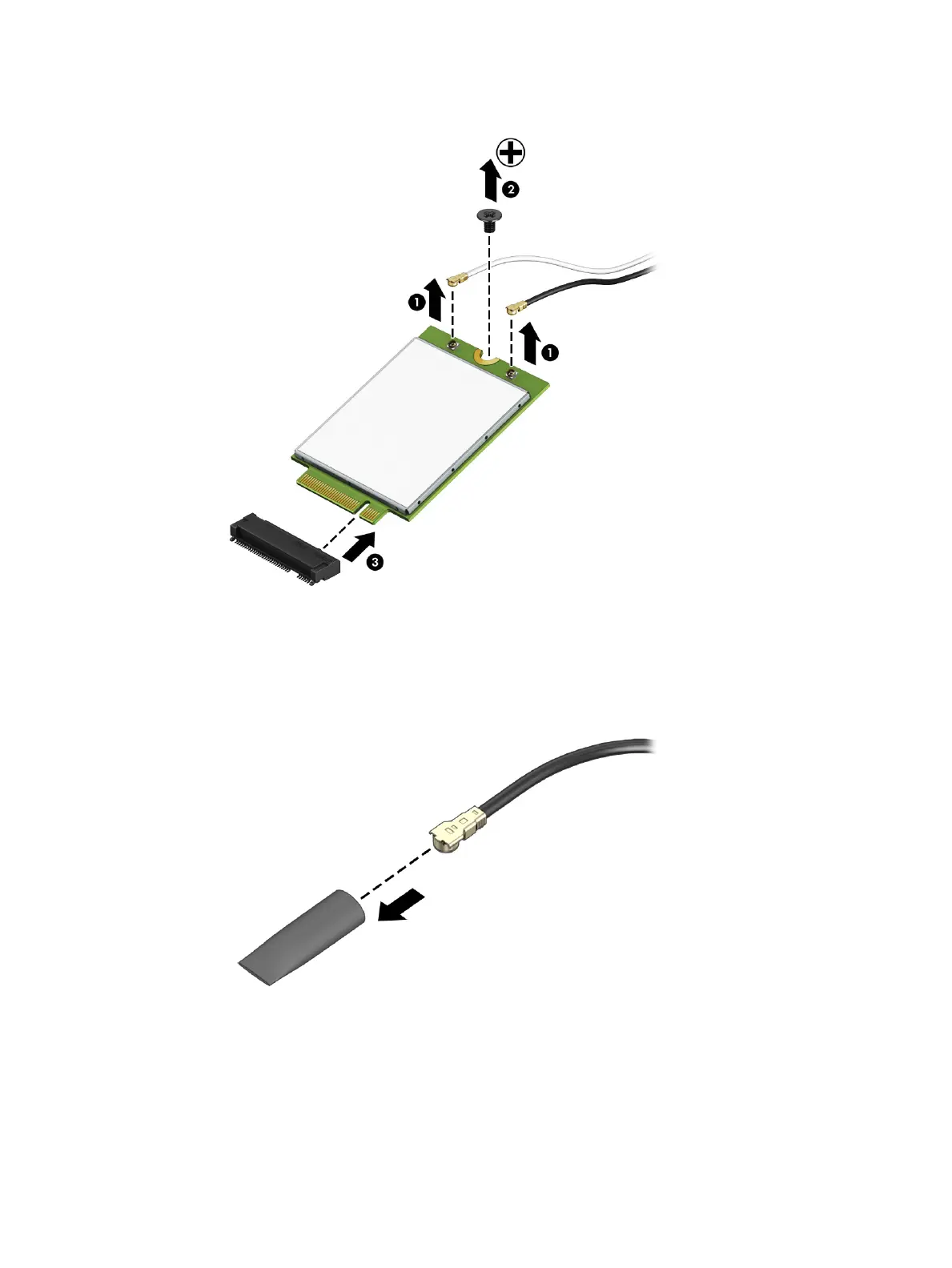

3. Remove the WWAN module (3) by pulling the module away from the slot at an angle.
4. If the WWAN antenna is not connected to the terminal on the WWAN module, a protective sleeve must be
installed on the antenna connector, as shown in the following illustration.
Reverse this procedure to install the WWAN module.
Connector board cable
To remove the connector board cable, use this procedure and illustration.
48 Chapter 5 Removal and replacement procedures for authorized service provider parts ENWW
