NFC module cable
To remove the NFC module cable, use this procedure and illustration.
NOTE: The NFC module cable is available in the Cable Kit, spare part number M20835-001.
Table 5-8 NFC module cable description and part number
Description Spare part number
NFC module cable:
NOTE: The NFC module cable spare part kit does not include the NFC module cable cable. The NFC module
cable cable is available in the Cable Kit, spare part number M20835-001.
M16045-001
Before removing the NFC module cable, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 42).
2. Remove the bottom cover (Bottom cover on page 42).
3. Remove the battery (Battery on page 43).
Remove the NFC module cable:

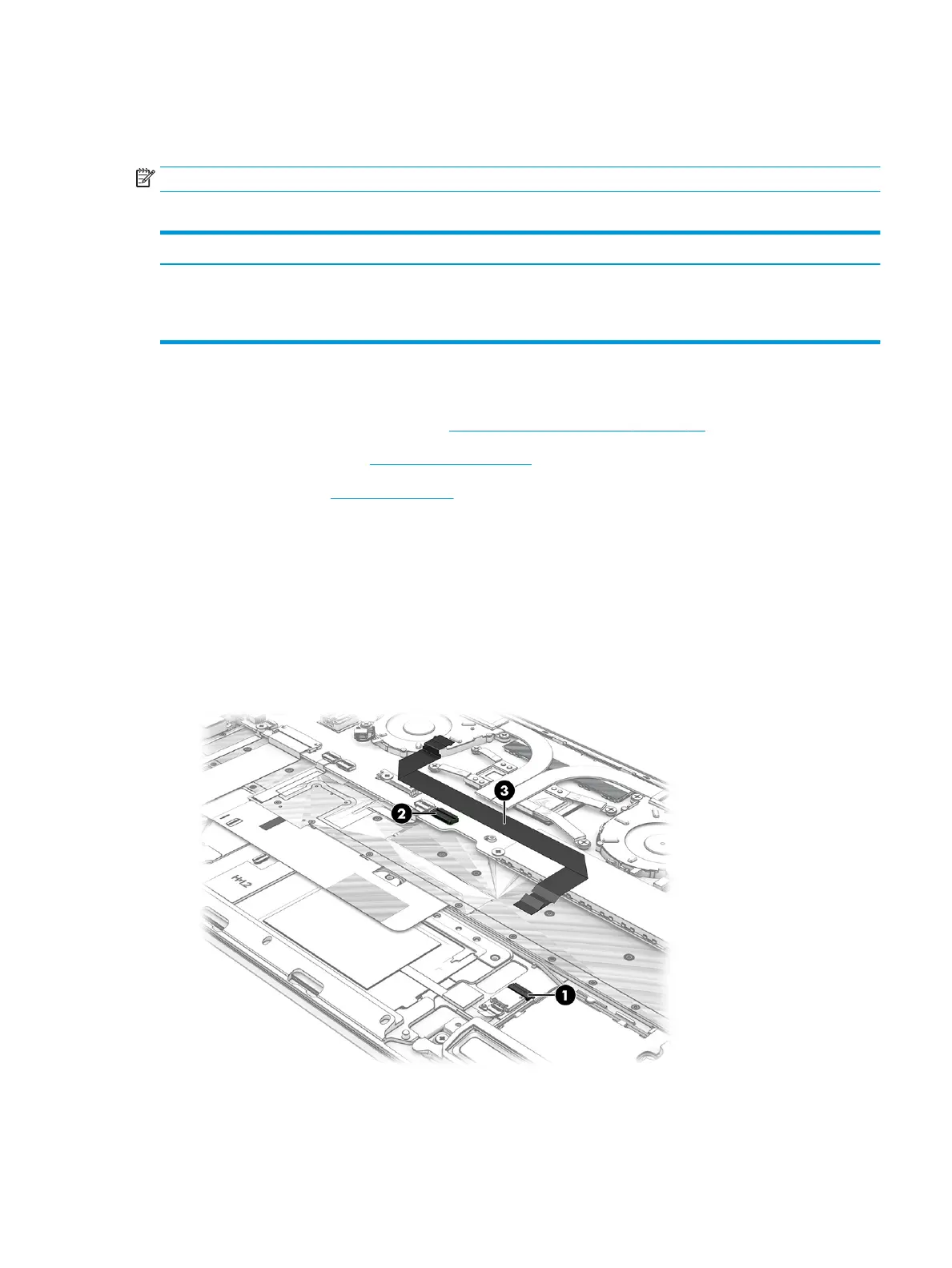

1. Detach the NFC module cable (1) from the top cover/keyboard. (The NFC module cable cable is attached to
the top cover/keyboard with double-sided adhesive.)
2. Release the ZIF connector (2) to which the NFC module cable cable is connected, and then disconnect the
cable from the system board.
3. Release the ZIF connector (3) to which the NFC module cable cable is connected, and then disconnect the
cable from the NFC module.
4. Remove the NFC module cable.
Reverse this procedure to install the NFC module cable.
ENWW Component replacement procedures 57
