NFC module
To remove the NFC module, use this procedure and illustration.
Table 5-9 NFC module cable description and part number
Description Spare part number
NFC module cable:
NOTE: The NFC module cable spare part kit does not include the NFC module cable cable. The NFC module
cable cable is available in the Cable Kit, spare part number M20835-001.
M16045-001
Before removing the NFC module, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 42).
2. Remove the bottom cover (Bottom cover on page 42).
3. Remove the battery (Battery on page 43).

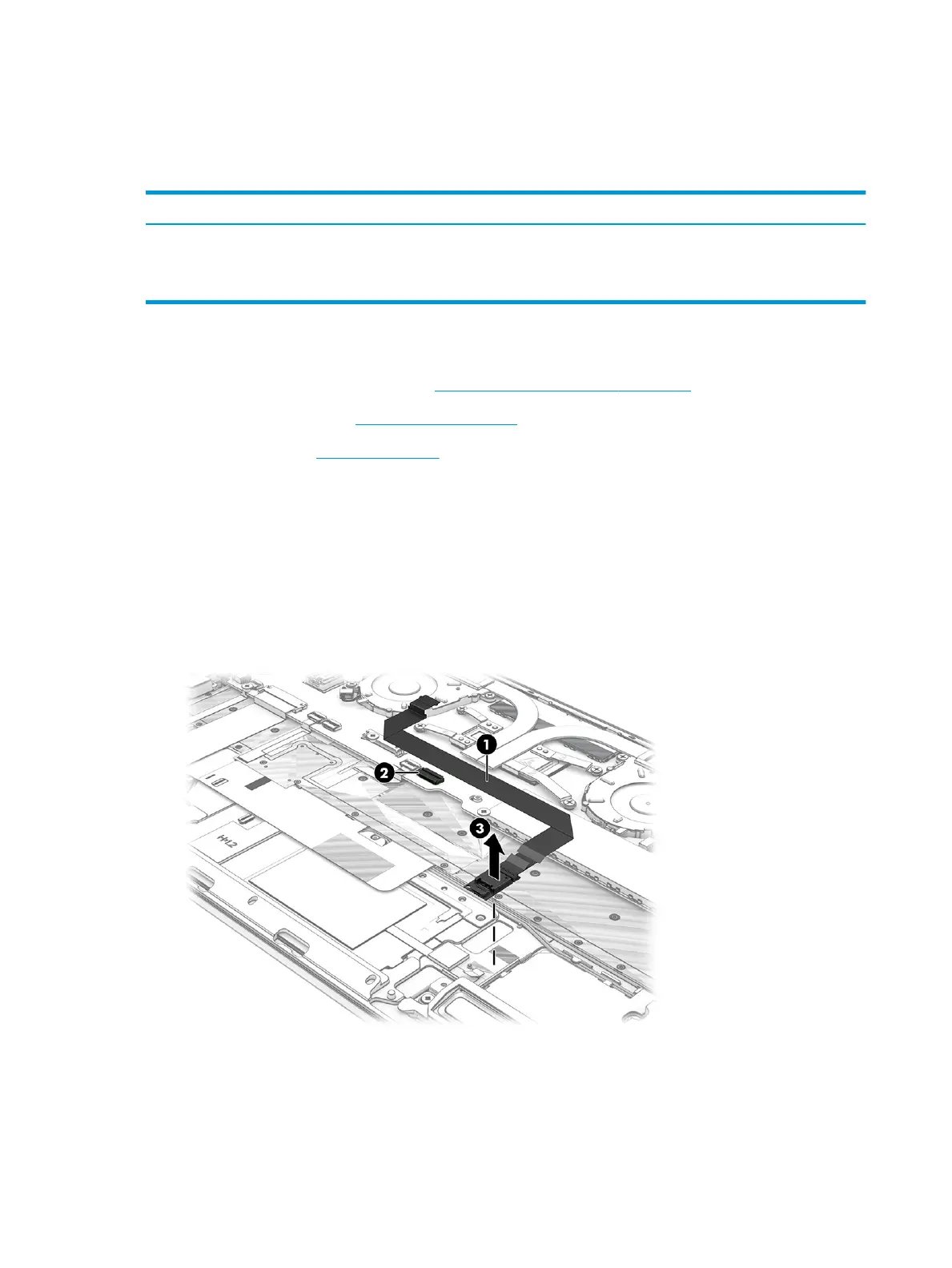

Remove the NFC module:
1. Detach the NFC module cable cable (1) from the top cover/keyboard. (The NFC module cable cable is
attached to the top cover/keyboard with double-sided adhesive.)
2. Release the ZIF connector (2) to which the NFC module cable cable is connected, and then disconnect the
cable from the system board.
3. Detach the NFC module (3) from the top cover/keyboard. (The NFC module is attached to the top cover/
keyboard with double-sided adhesive.)
Reverse this procedure to install the NFC module.
System board
To remove the system board, use these procedures and illustrations.
58 Chapter 5 Removal and replacement procedures for authorized service provider parts ENWW
