4. Release the ZIF connector (4) to which the NFC module cable is connected, and then disconnect the cable
from the system board.
5. Fold back the keyboard cable (5) until the touchpad screws are accessible.

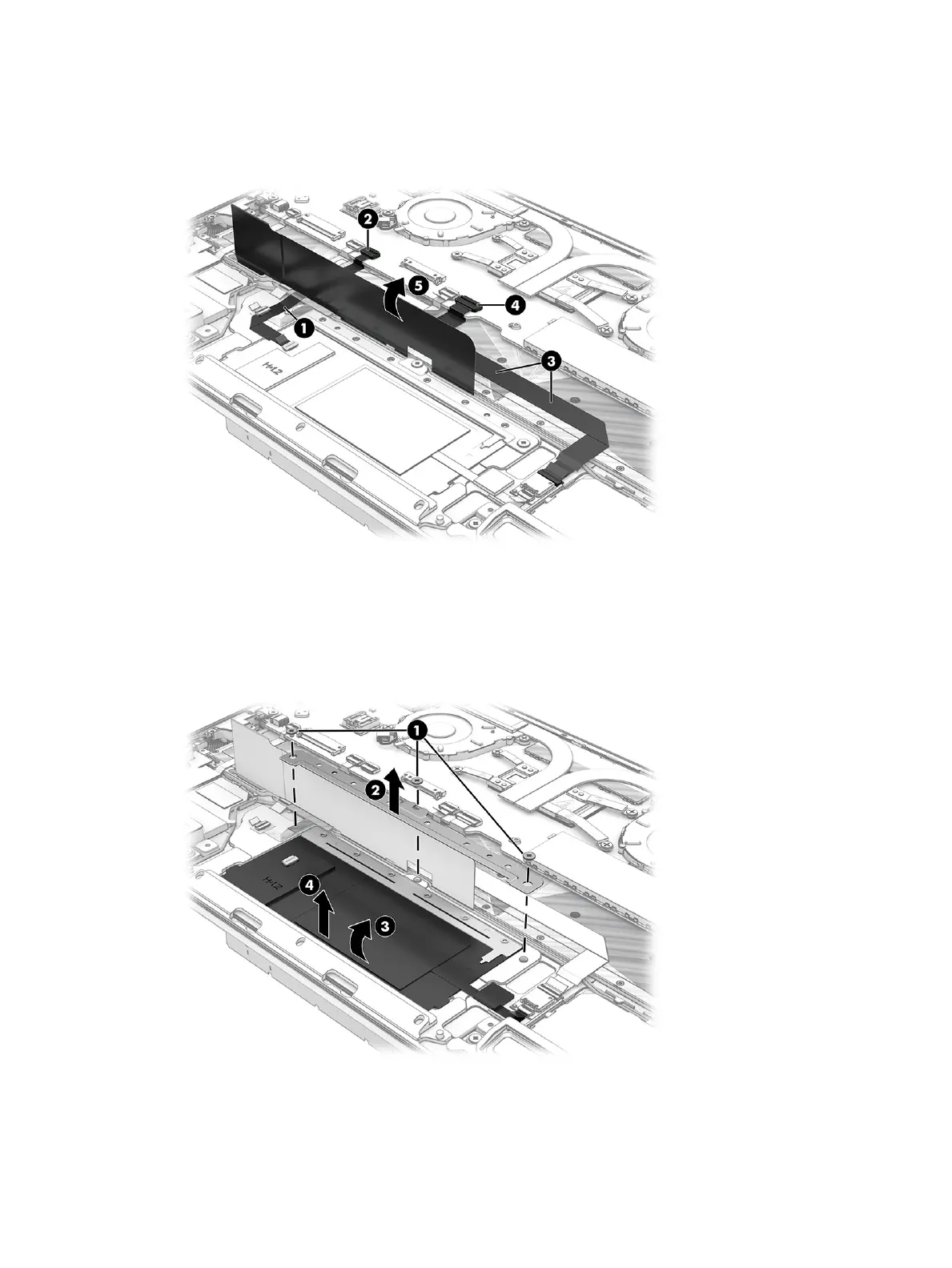

6. Remove the three Phillips M2.0 × 2.0 broad head screws (1) that secure the touchpad to the computer.
7. Remove the touchpad bracket (2).
8. Lift the front edge (3) of the touchpad until it clears the top cover/keyboard.
9. Remove the touchpad from the computer (4).
Reverse this procedure to install the touchpad.
