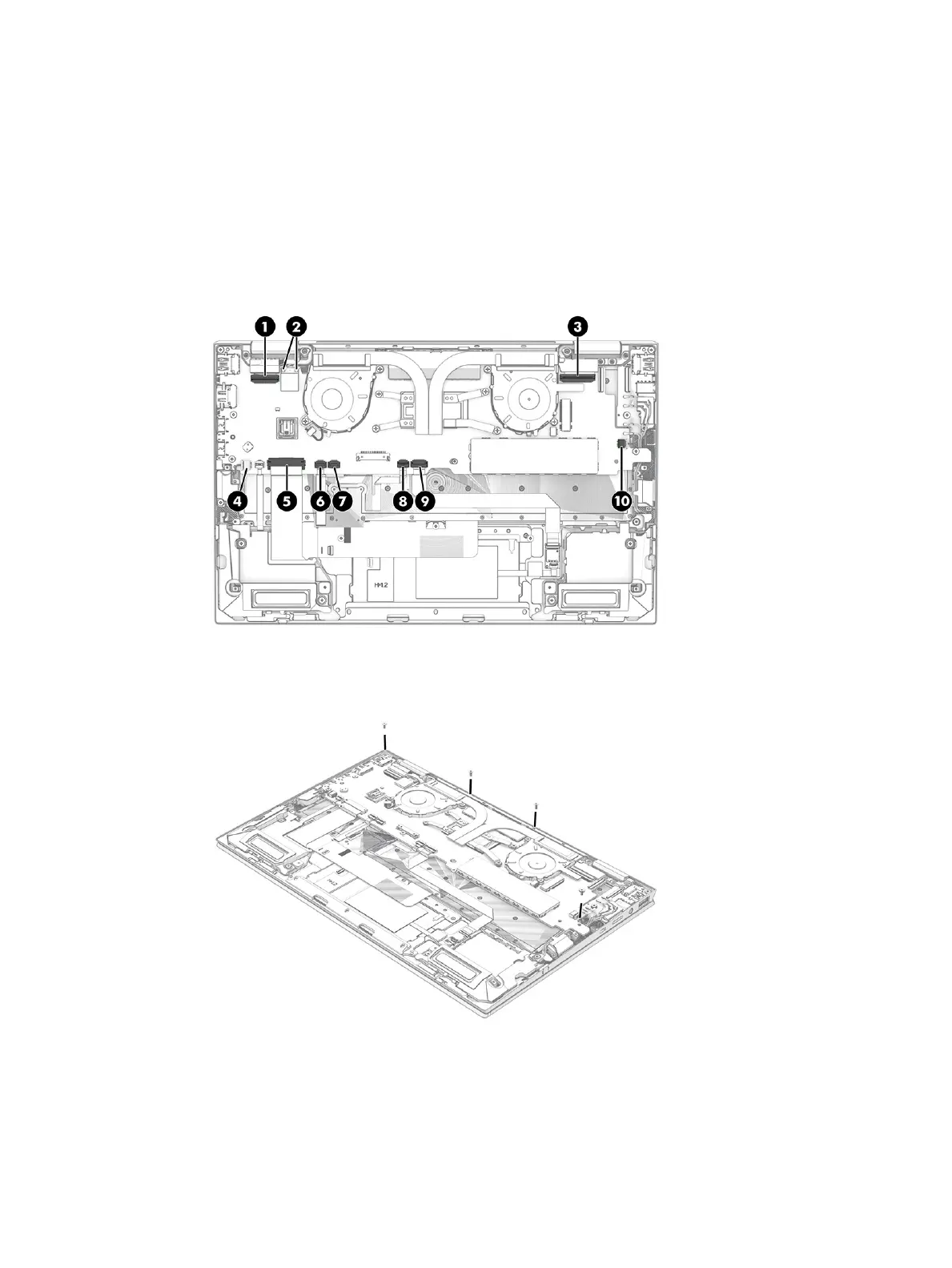

● Keyboard cable ZIF connector cable (5)
● Touchpad cable ZIF connector cable (6)
● Backlight cable ZIF connector cable (7)
●
Fingerprint cable ZIF connector cable (8)
● NFC module cable ZIF connector cable (9)
● Left speaker cable (10)
5. Remove the four Phillips M2.0 × 5.0 screws that secure the system board to the computer.
6. Lift the front edge of the system board (1) until it rests at an angle.
ENWW Component replacement procedures 61
