NFC module cable
NOTE: The NFC module cable is included in the Cable Kit, spare part number L41024-001.
Before removing the NFC module cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 27).
5. Remove the battery (see Battery on page 28).

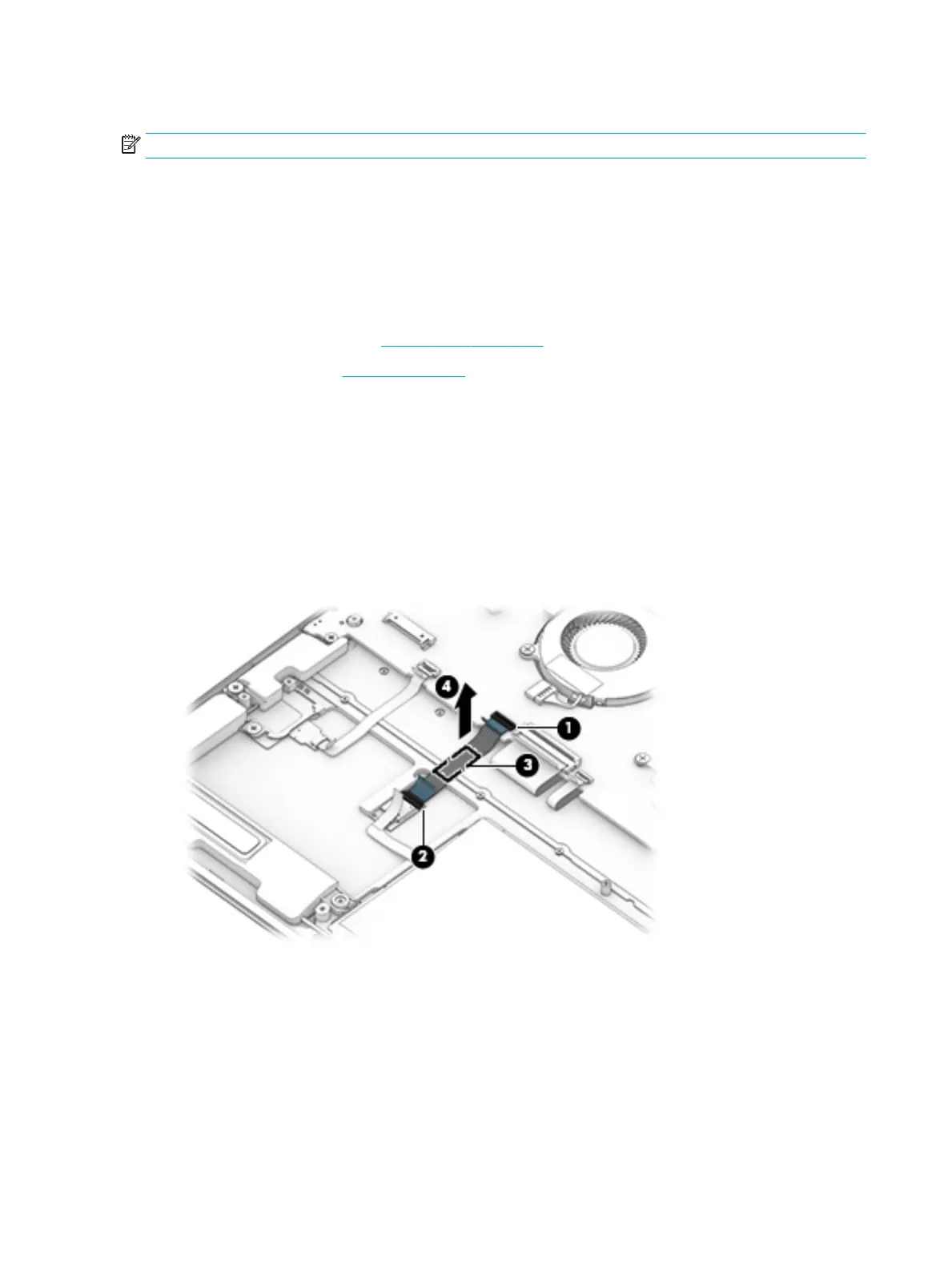

Remove the NFC module cable:
1. Release the ZIF connector (1) to which NFC module cable is connected, and then disconnect the NFC
module cable from the system board.
2. Release the ZIF connector (2) to which NFC module cable is connected, and then disconnect the NFC
module cable from the NFC module.
3. Detach the NFC module cable (3) from the keyboard/top cover. (The NFC module cable is attached to
the system board with adhesive.)
4. Remove the NFC module cable (4).
Reverse this procedure to install the NFC module cable.
