HP EliteOne 800 G3 Hardware Reference Guide

Connecting and disconnecting cables

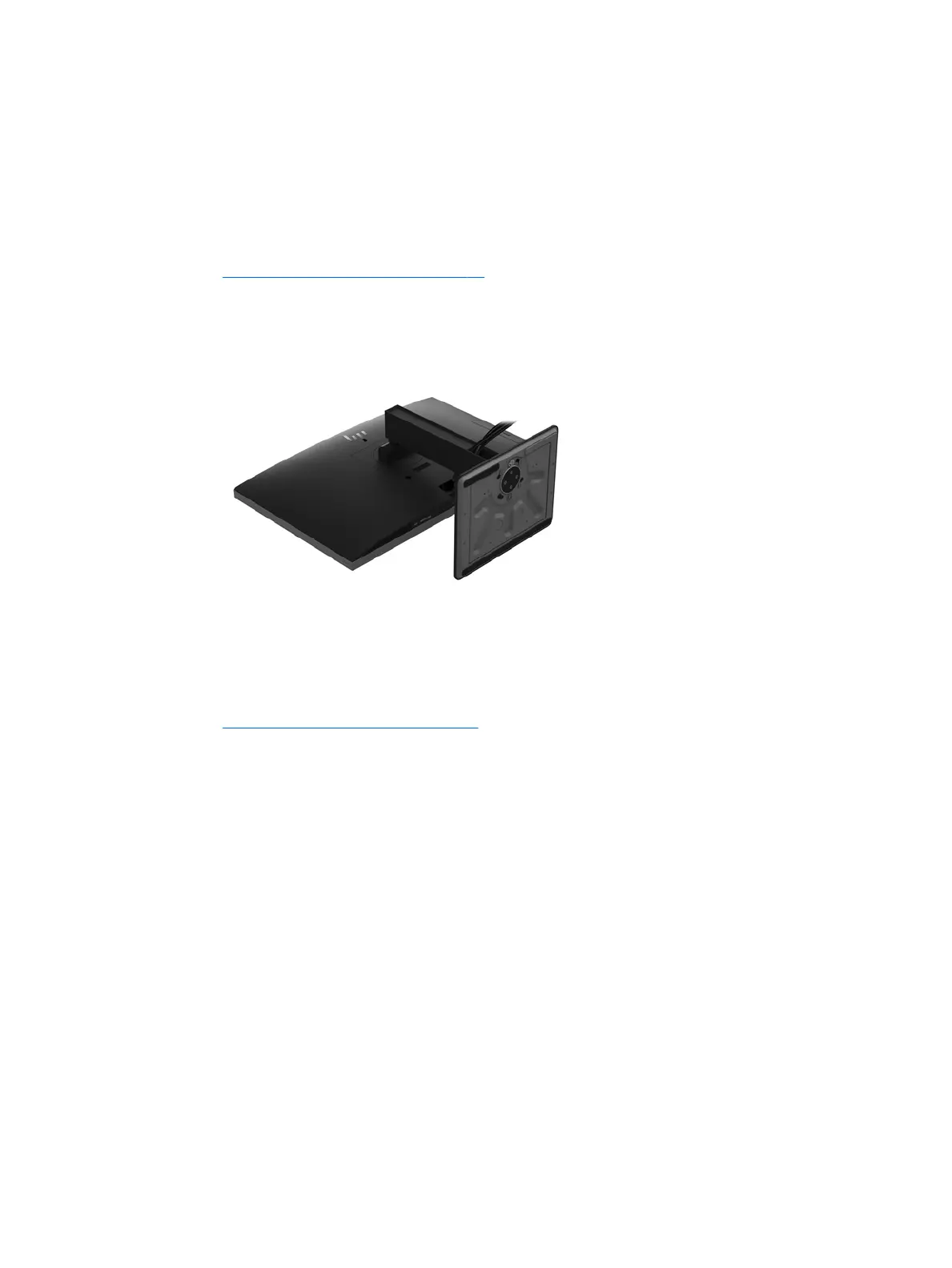

Connecting cables
1. Place the computer face down on a soft at surface. HP recommends that you set down a blanket, towel,
or other soft cloth to protect the bezel and screen surface from scratches or other damage.
2. If the rear port cover is installed, remove the cover.
See Removing the rear port cover on page 12.
3. Route the power and all peripheral cables through the opening in the base of the stand.
4. Connect the peripheral cables to the appropriate ports.
5. Replace the rear port cover.
See Installing the rear port cover on page 13.
6. Connect the power cord to the power connector on the rear of the computer.
Connecting a display
The DisplayPort and HDMI connectors on the rear of the computer allow you to connect displays to the computer.
●
If your computer has Intel graphics, you may connect up to two displays in one of the following
congurations:
—
Two displays daisy-chained to the DisplayPort
—
One display connected to the DisplayPort and one to the HDMI port
●
If your computer has AMD graphics, you may connect up to four displays in one of the following
congurations:
—
All four displays daisy-chained to the DisplayPort
—
Three displays daisy-chained to the DisplayPort and one connected to the HDMI port
If you are adding a display that has a DisplayPort or an HDMI connector, then no video adapter is required. If you
are adding a display that does not have a DisplayPort or HDMI connector, you can purchase a video adaptor from
HP for your conguration.
Connecting and disconnecting cables 11

HP EliteOne 800 G3 Specifications

General

Tcase	71 °C
Bus type	DMI3
Stepping	R0
Processor code	SR2BX
Processor cache	6 MB
Processor cores	4
Processor model	i5-6500
System bus rate	8 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-6500 Desktop series
Processor socket	LGA 1151 (Socket H4)
Processor codename	Skylake
Processor frequency	3.2 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Conflict-Free processor	Yes
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.6 GHz
Processor operating modes	64-bit
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	65 W
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor	1.35 V
Memory clock speeds supported by processor	2133, 1333, 1600, 1866 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	64 GB
Discrete graphics card	No
On-board graphics card ID	1912
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 530
Maximum on-board graphics card memory	1.74 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	350 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1050 MHz
Number of displays supported (on-board graphics)	3
Color gamut	72 %
RGB color space	NTSC
Display diagonal	23.8 \
Native aspect ratio	16:9
Product type	All-in-One PC
Motherboard chipset	Intel® Q270
Memory slots	2
Internal memory	8 GB
Memory slots type	SO-DIMM
Memory clock speed	2400 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
Memory layout (slots x size)	1 x 8 GB
SSD capacity	256 GB
SSD interface	PCI Express
Storage media	SSD
Optical drive type	DVD-RW
Card reader integrated	-
Number of storage drives installed	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Product color	Black, Silver
Country of origin	China
Antenna type	2x2
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC adapter power	180 W
Recovery operating system	Windows 10 Pro
Operating system installed	Windows 7 Professional
Scalability	1S
Processor ARK ID	88184
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2, AVX 2.0, SSE4.1
Thermal solution specification	PCG 2015C
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth (with stand)	53.8 mm
Width (with stand)	539.6 mm
Height (with stand)	314.8 mm
Weight (with stand)	6030 g
