Installing a 2.5-inch hard disc drive
1. Insert the 2.5-inch hard disc drive into the drive cage.
●
To install a primary hard disc drive, insert the drive into the lower position in the drive cage.
Be sure to insert the end with the connectors first.
NOTE: The primary drive is the lower position in the drive cage. If only one drive is to be
installed, it must occupy this position.
●
To install a secondary hard disc drive, set the drive into the upper tray of the drive cage. Be
sure the connectors are facing the same direction as the connectors of the primary hard
disc drive.
2. Fasten the lower 2.5-inch hard disc drive securely into the drive cage with four mounting screws
with grommets.

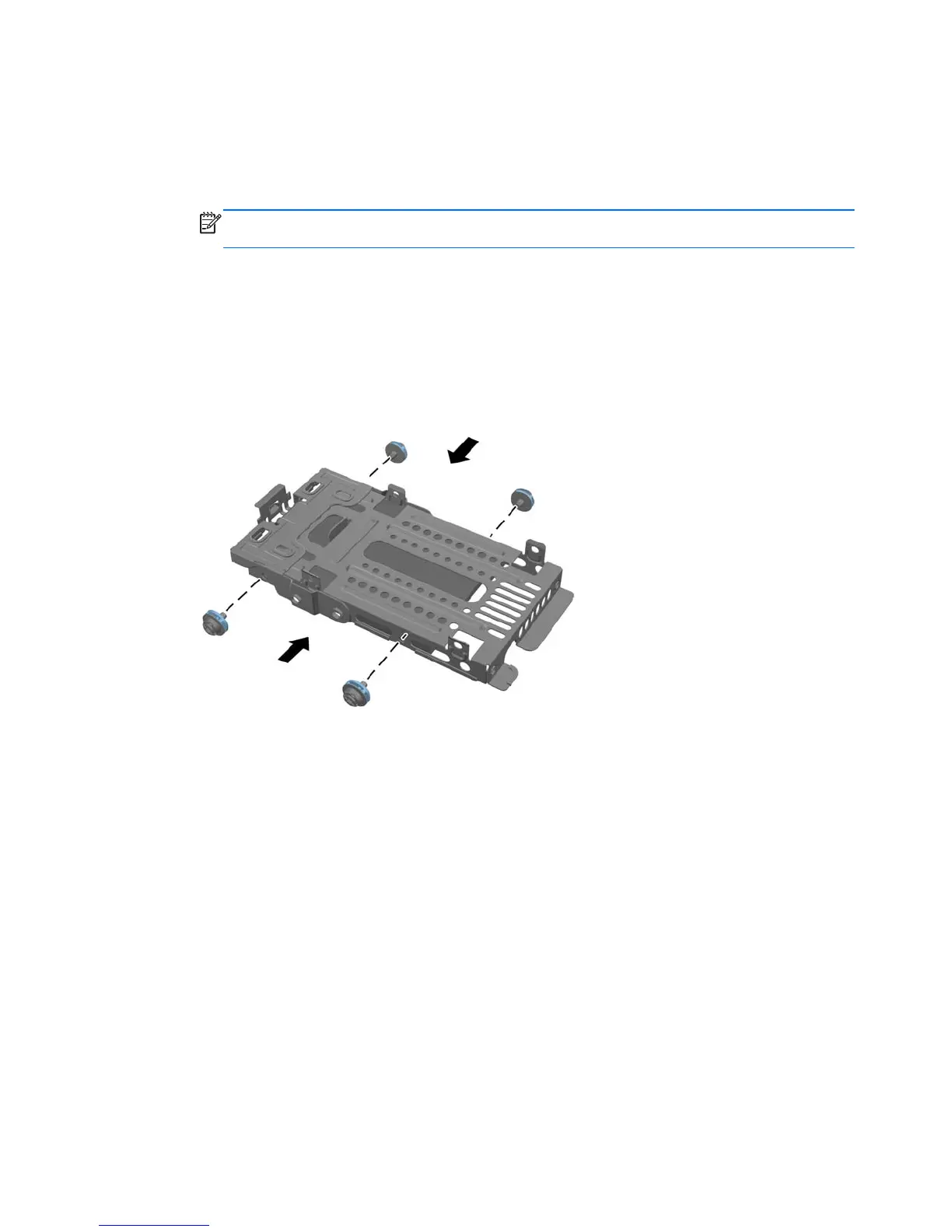

Figure 2-37 Securing 2.5-inch hard disc drives
38 Chapter 2 Hardware repair and upgrade
